Hood Adjustment: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height between the hood and the body.
- If not as specified, adjust the gap and height. (See GAP ADJUSTMENT .) (See HEIGHT ADJUSTMENT .)
Clearance (Standard)
1. : 2.3-6.7 mm {0.10-0.26 in}
2. : -1.2-3.2 mm {-0.05-0.12 in}
3. : 3.5-6.5 mm {0.14-0.25 in}
4. : -1.85-2.65 mm {-0.08-0.10 in}
5. : 2.3-6.7 mm {0.10-0.26 in}
6. : -0.55-2.45 mm {-0.03-0.09 in}
7. : 2.7-4.7 mm {0.11-0.18 in}
8. : -1.0-1.0 mm {-004-0.04 in}
Clearance (Sports)
1. : 2.3-6.7 mm {0.10-0.26 in}
2. : -1.4-3.0 mm {-0.06-0.11 in}
3. : 3.65-6.65 mm {0.15-0.26 in}
4. : -1.85-2.65 mm {-0.08-0.10 in}
5. : 2.3-6.7 mm{0.09-0.26 in}
6. : -0.55-2.45 mm{-0.03-0.09 in}
7. : 2.7-4.7 mm {0.11-0.18 in}
8. : -1.0-1.0 mm {-004-0.04 in}

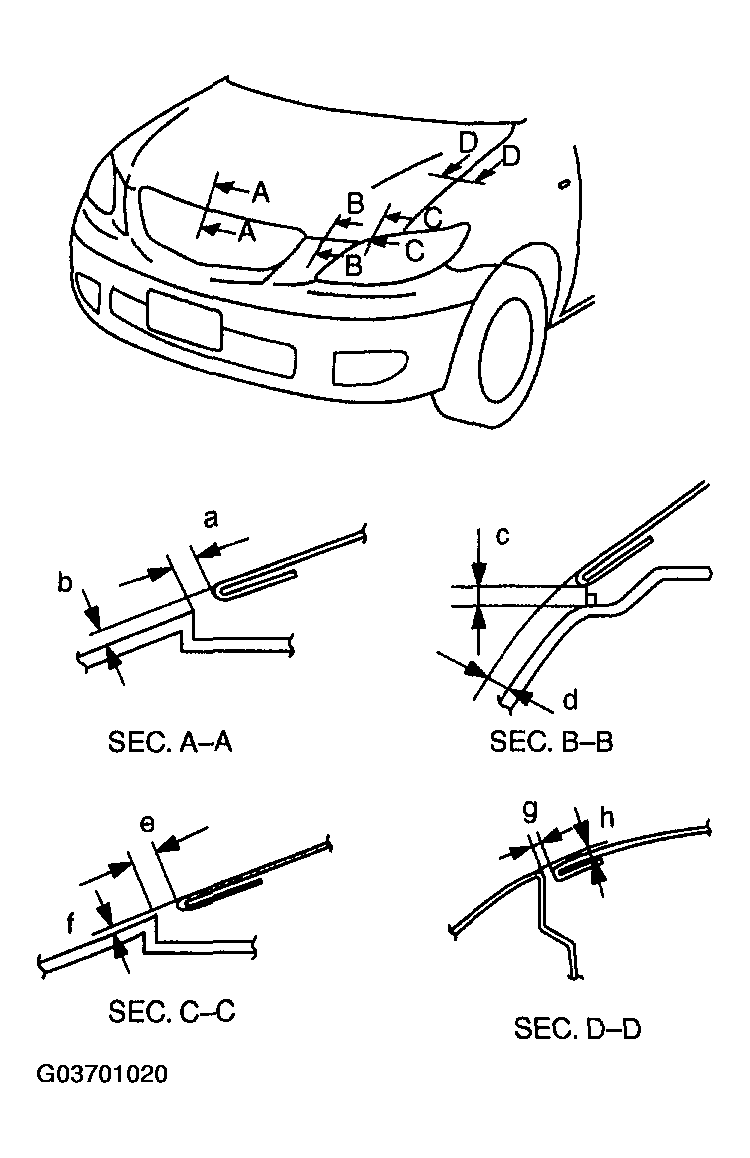

Fig 1: Measuring Gap And Height Between Hood And Body
Courtesy of MAZDA MOTORS CORP.
