Liftgate Lower Trim Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the liftgate upper trim.
- Remove the liftgate side trim.
- Remove the cargo compartment light.
- Remove the liftgate lower trim installation fasteners.
- Remove the pull handle installation screws.
- Remove the pull handle.

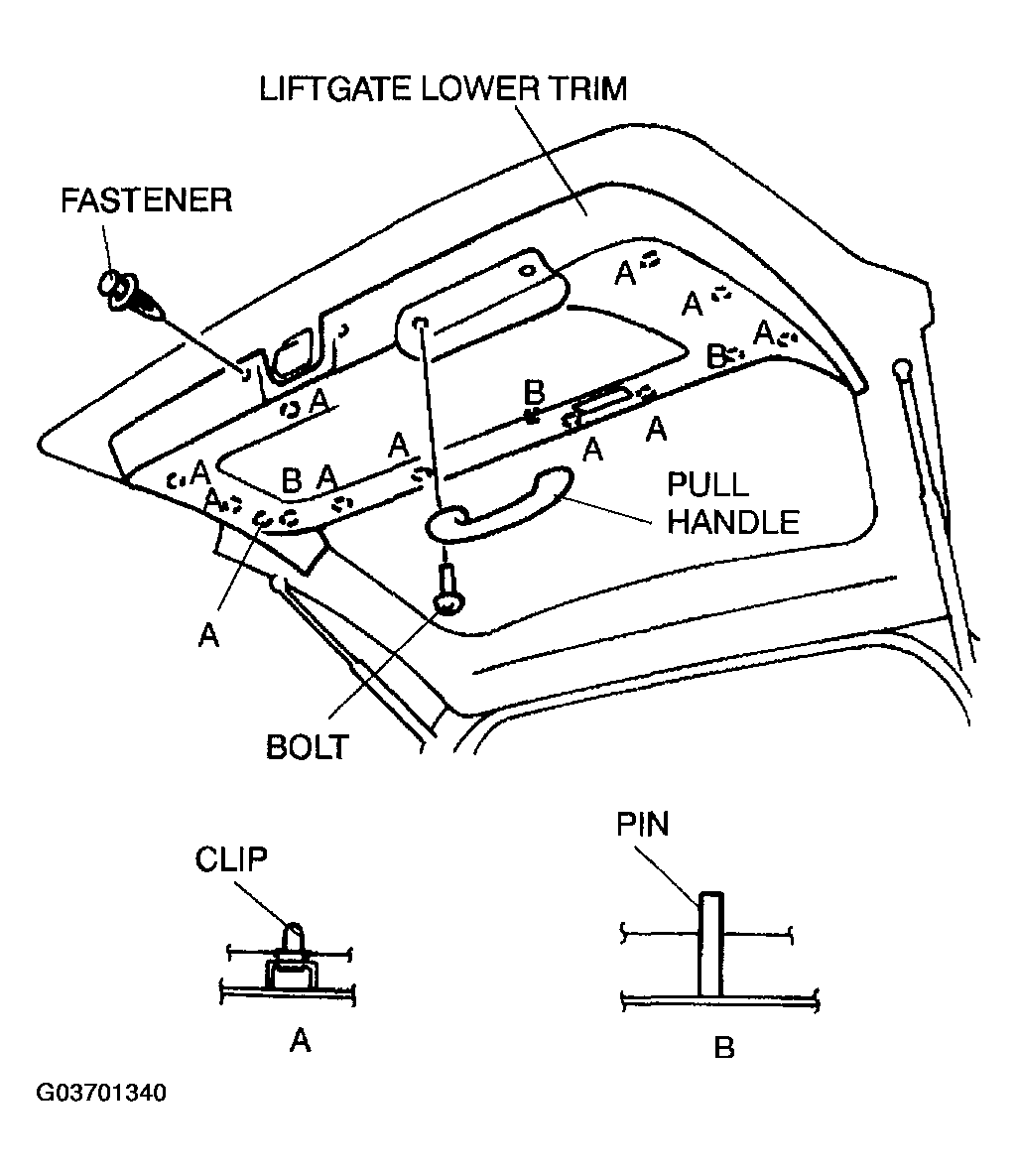

- Pull the liftgate lower trim forward to disengage clips A and pins B from the body, and remove the liftgate lower trim.
- Install in the reverse order of removal.
