Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel off the right side mud guard.
Remove in the order indicated in the table.
Install in the reverse order of removal.

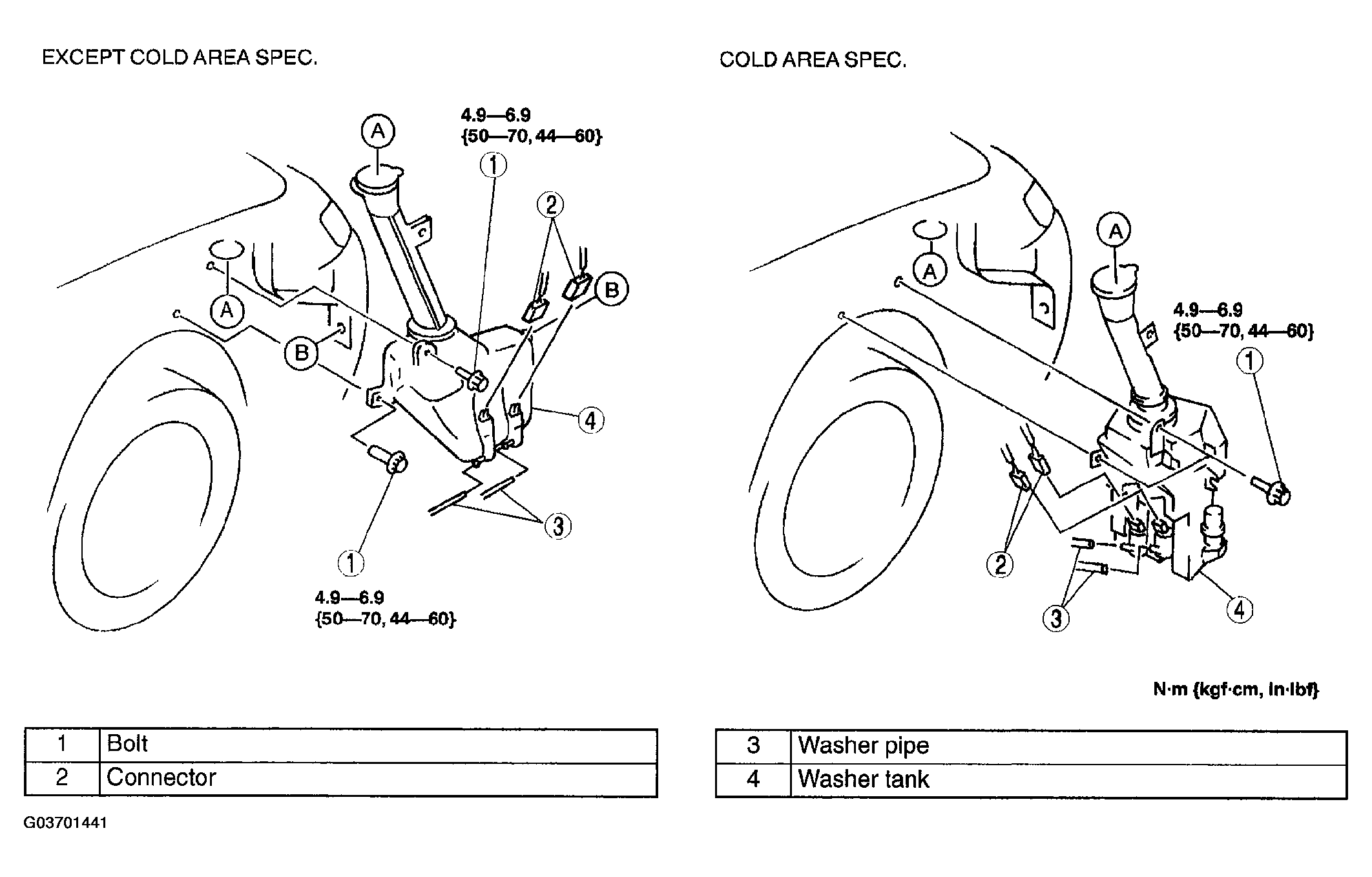

Fig 1: Removing Washer Tank - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
