Stabilizer Control Link installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the stabilizer control link in the proper angle as shown in the figure.
CAUTION:
- Be sure to install the stabilizer control link in the proper position. If it is not installed properly, the stabilizer control link may interfere with peripheral components when driving, causing damage to each other.

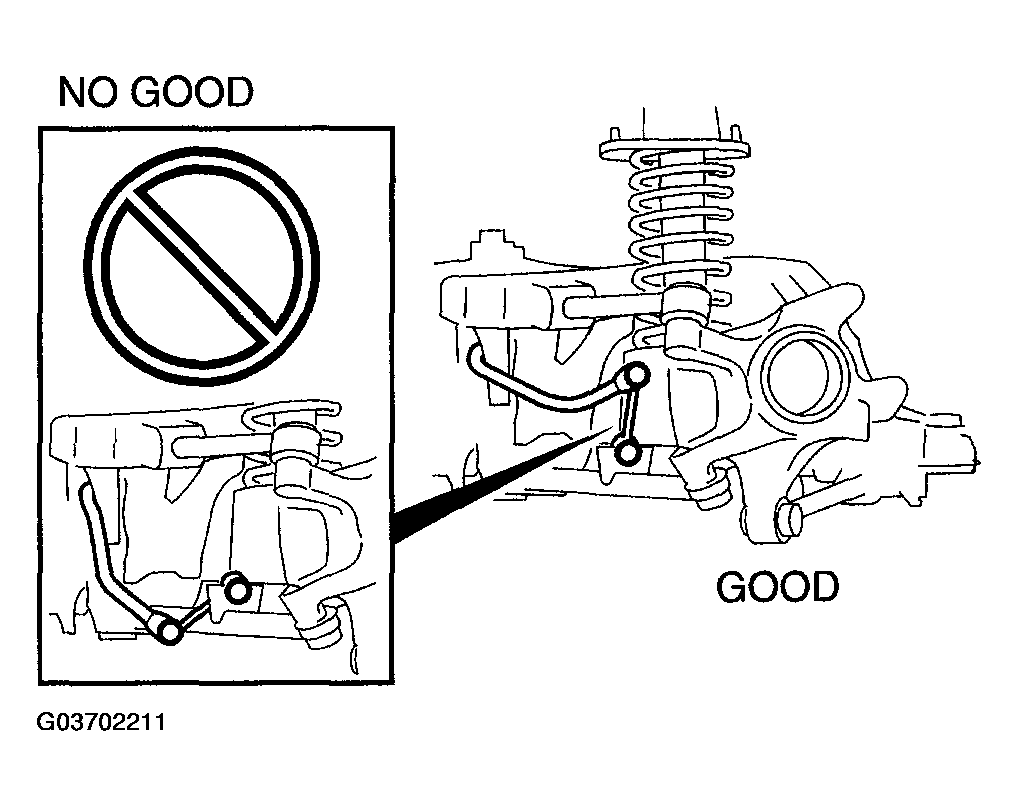

Fig 1: Installing The Stabilizer Control Link In The Proper Position
Courtesy of MAZDA MOTORS CORP.
Place the vehicle on the ground and verify that the stabilizer control link is installed in the angle shown in the figure.

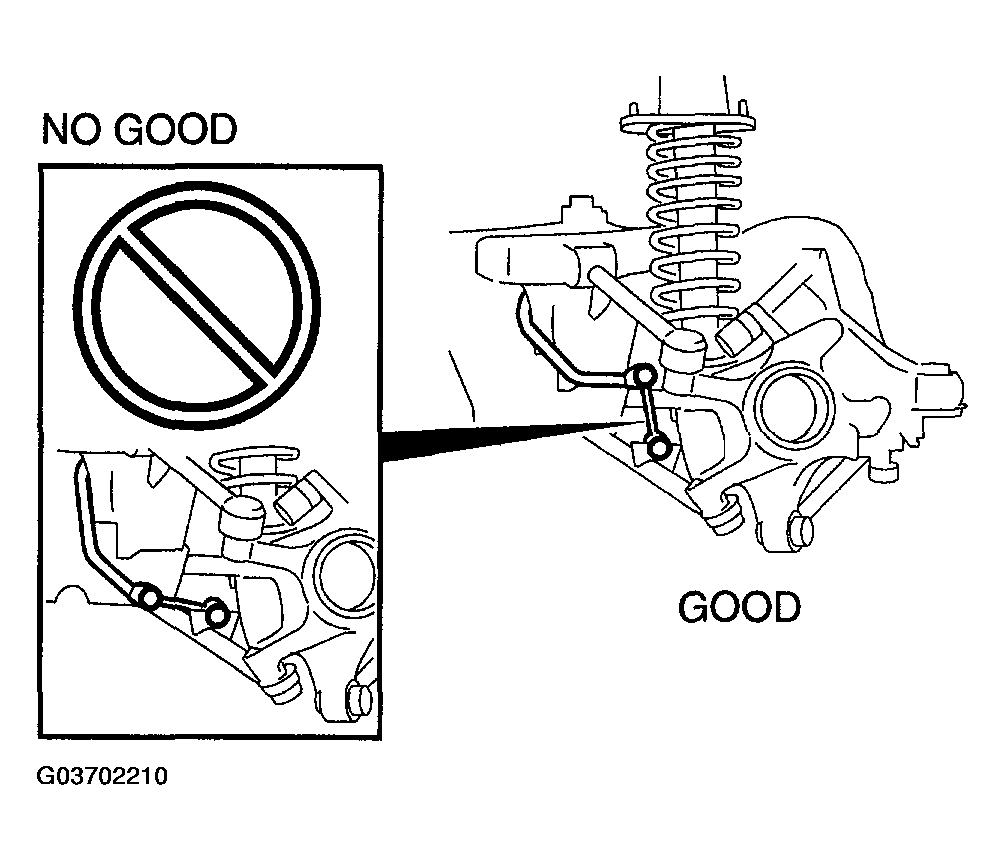

Fig 2: Installing The Stabilizer Control Link In The Proper Position
Courtesy of MAZDA MOTORS CORP.
