Outer Mirror Glass Assembly Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Press area A of the mirror glass into the base to attach pin A.
Press areas B of the mirror glass into the base to attach pins B.

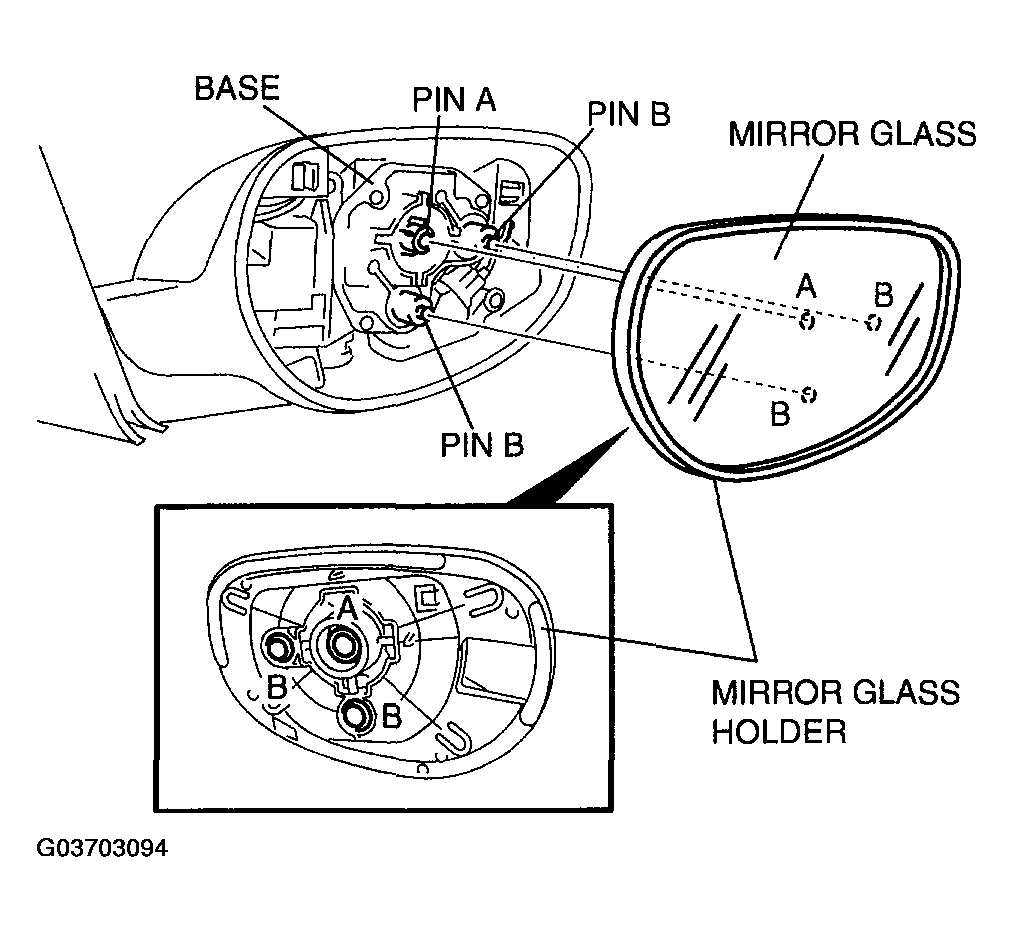

Fig 1: Pressing Mirror Glass Into Base
Courtesy of MAZDA MOTORS CORP.
