Rear Door Glass Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the inner handle cover.
Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
Pull up the rear door weatherstrip and remove the screw.
Remove the bolts.
Remove the rear door glass.
Install in the reverse order of removal.

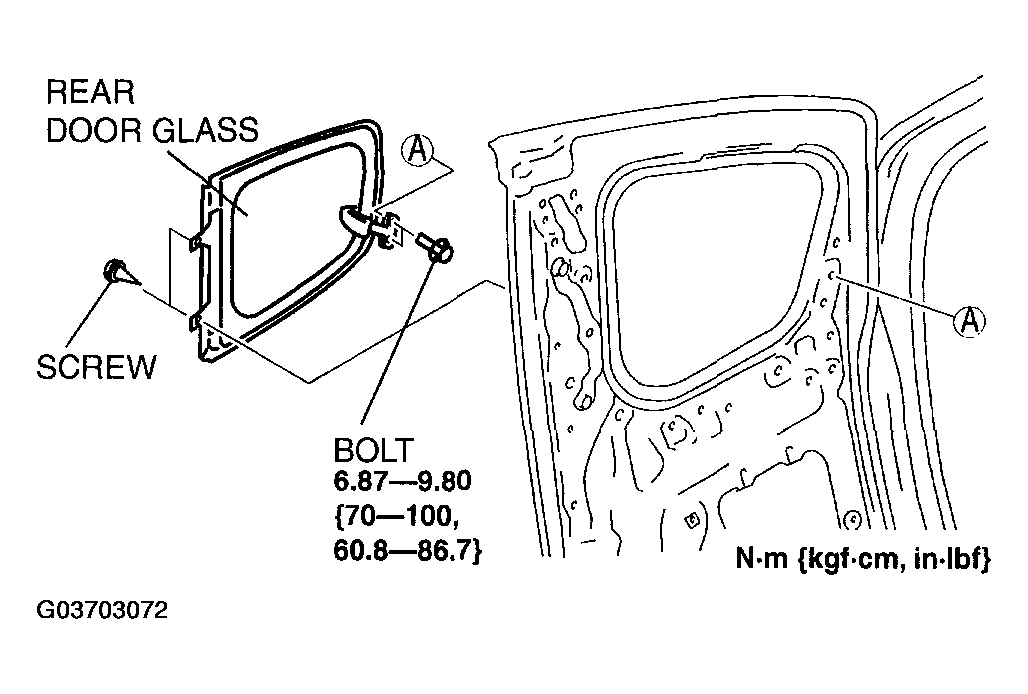

Fig 1: Removing Rear Door Glass With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
