Spring Installation Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Place the clutch pedal component in a vise.

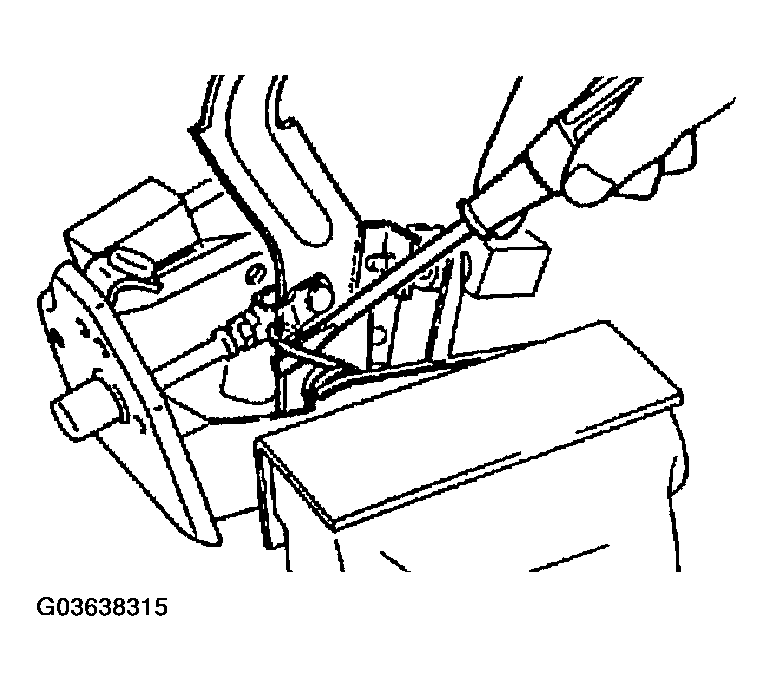

- Install the spring onto the clutch pedal as shown in Fig 1.
- Adjust the clutch pedal height and free play after installation.
