Clutch Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The clutch release cylinder can be removed from the transmission with the clutch pipe connected.

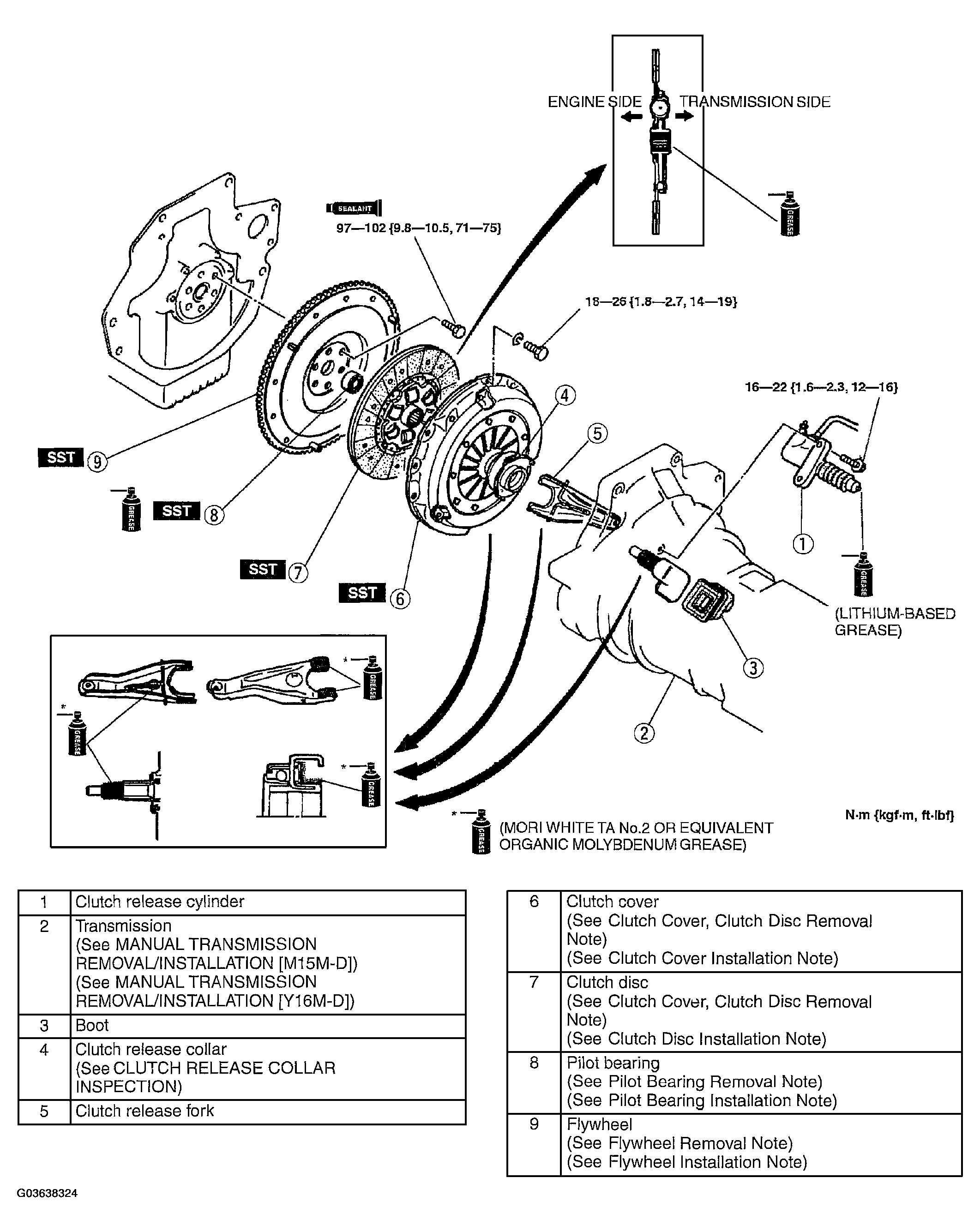

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
