Removal & Installation: Pcm: Notes

1. Disconnect the negative battery cable.
2. Remove the TCM. See TCM  .
3. Remove in the order indicated in the illustration.
4. Install in the reverse order of removal.

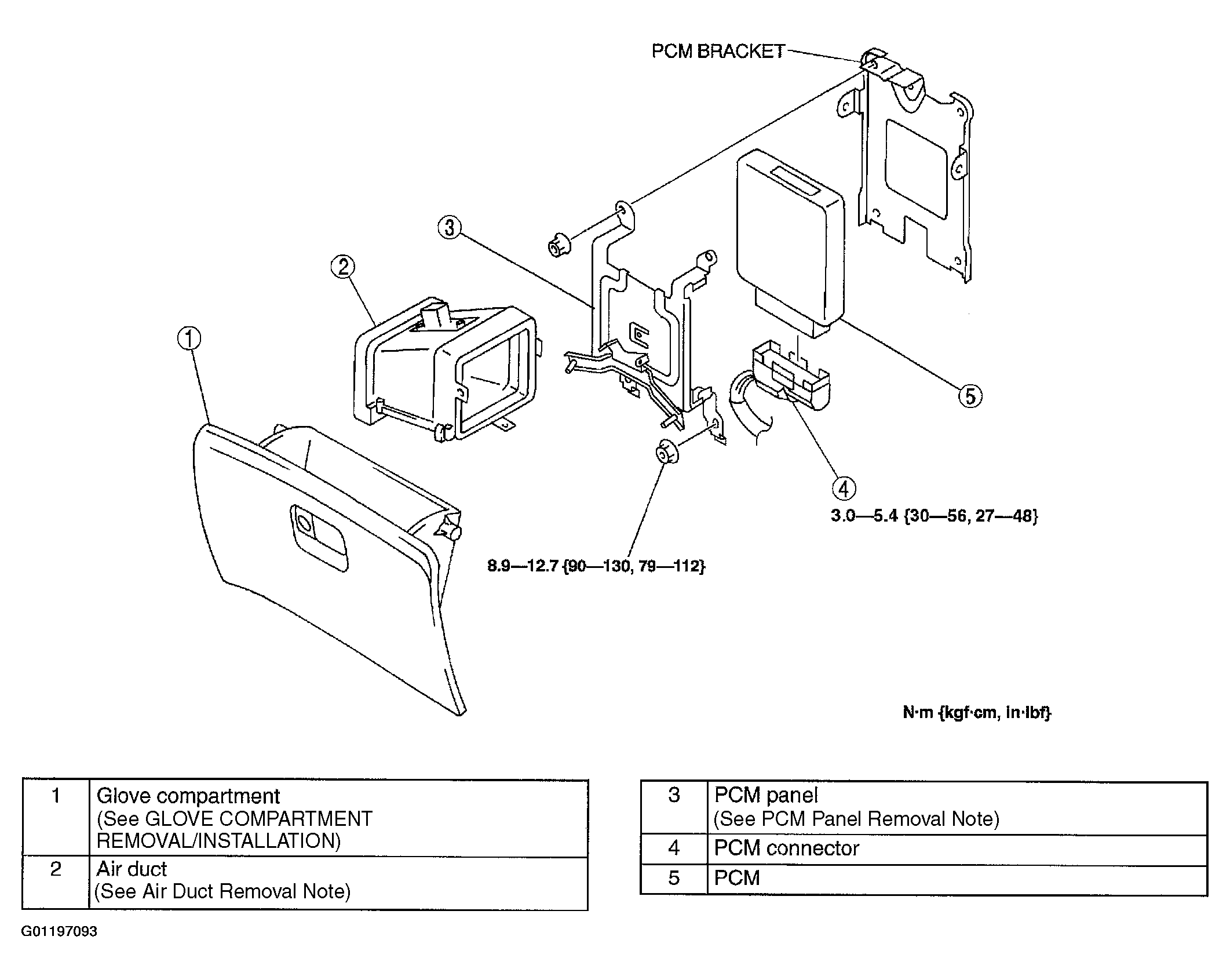

Fig 1: Removing PCM
