Connector Views

NOTE: For connector views referred to in TROUBLE SHOOTING, COMPONENT TESTS and DIAGNOSTIC TESTS, see Fig 1 -Fig 3 .

Fig 1: Identifying Data Link Connector (DLC-1) Terminals

Courtesy of MAZDA MOTORS CORP.

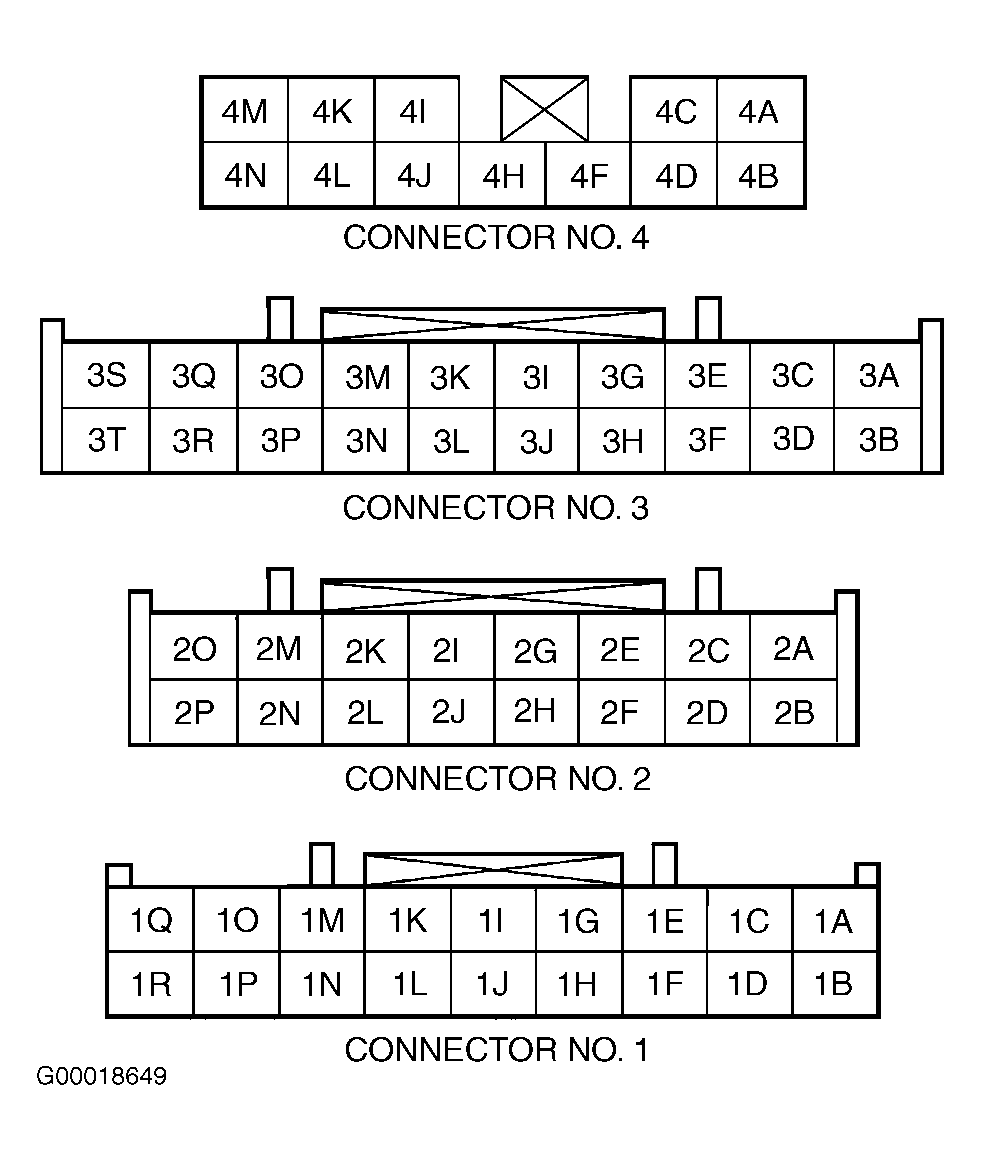

Fig 2: Identifying ABS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Instrument Cluster Connector Terminals

Courtesy of MAZDA MOTORS CORP.
