Main Fuse & Relay Box

Main fuse and relay box is located on driver's side of engine compartment. See Fig 1 .

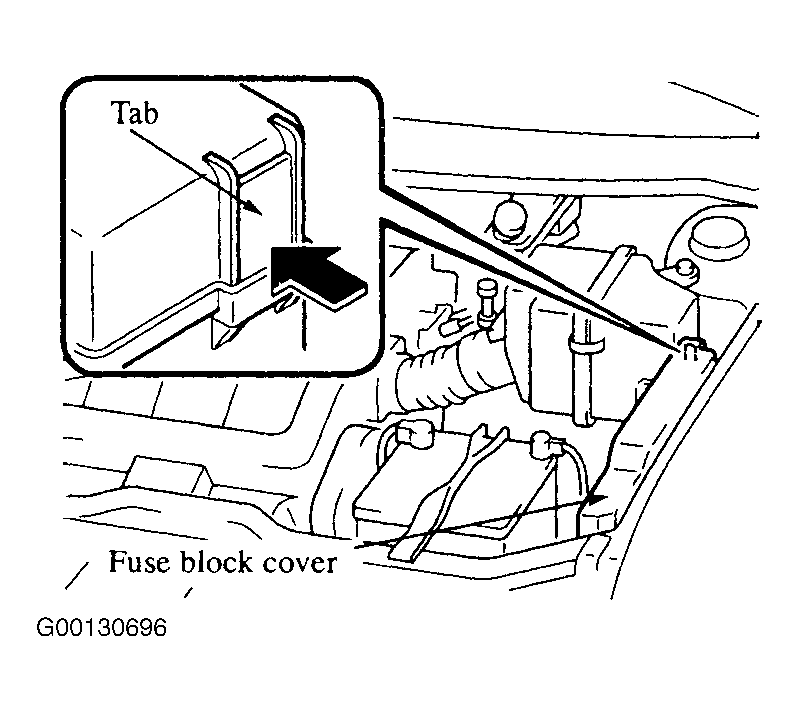

Fig 1: Locating Main Fuse & Relay Box

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Main Fuse & Relay Box Components

Courtesy of MAZDA MOTOR CORP

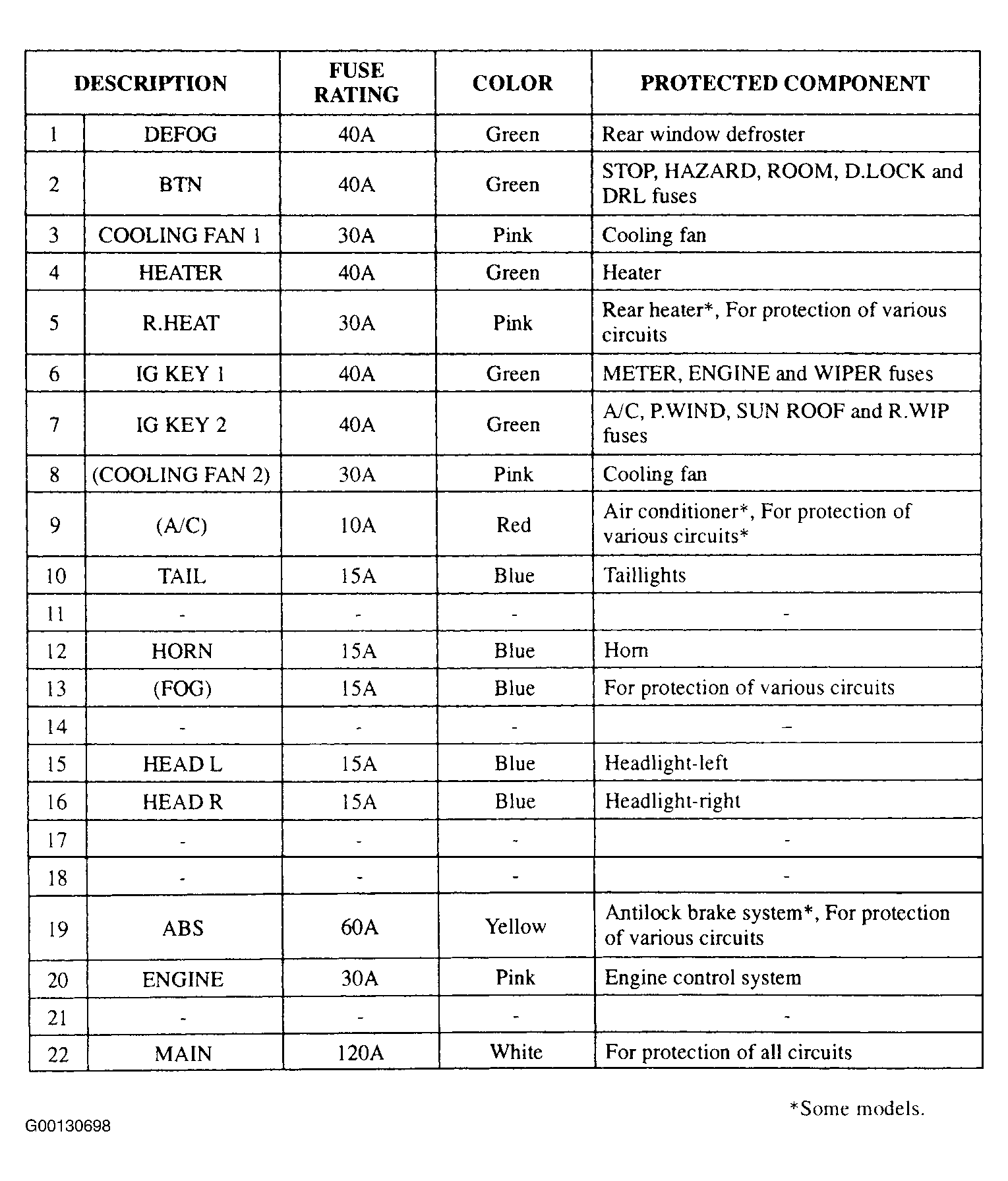

Fig 3: Main Fuse & Relay Box Legend

Courtesy of MAZDA MOTOR CORP
