Mode 6 - 1999-2023 MAZDA: MAZDA3: 2013

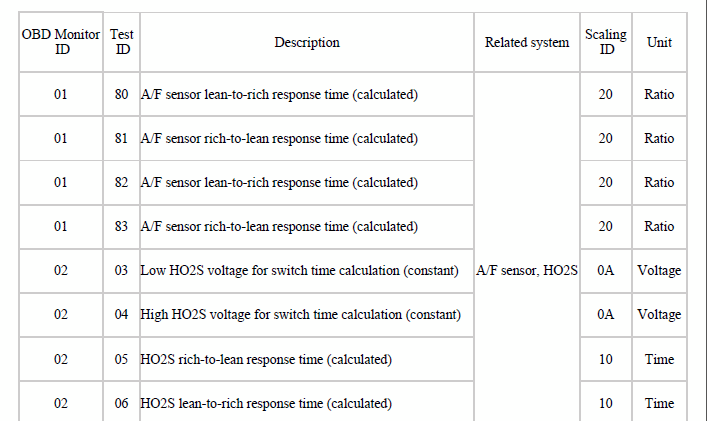

Fig 1: Mode $06 Data For '13 Mazda3 (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

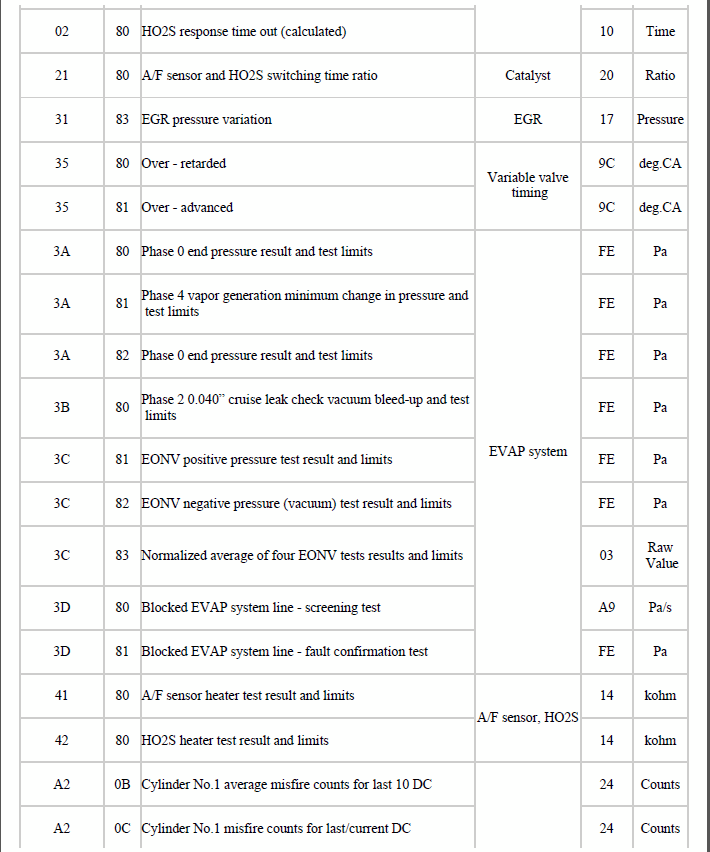

Fig 2: Mode $06 Data For '13 Mazda3 (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Mode $06 Data For '13 Mazda3 (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
