Component Locations
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

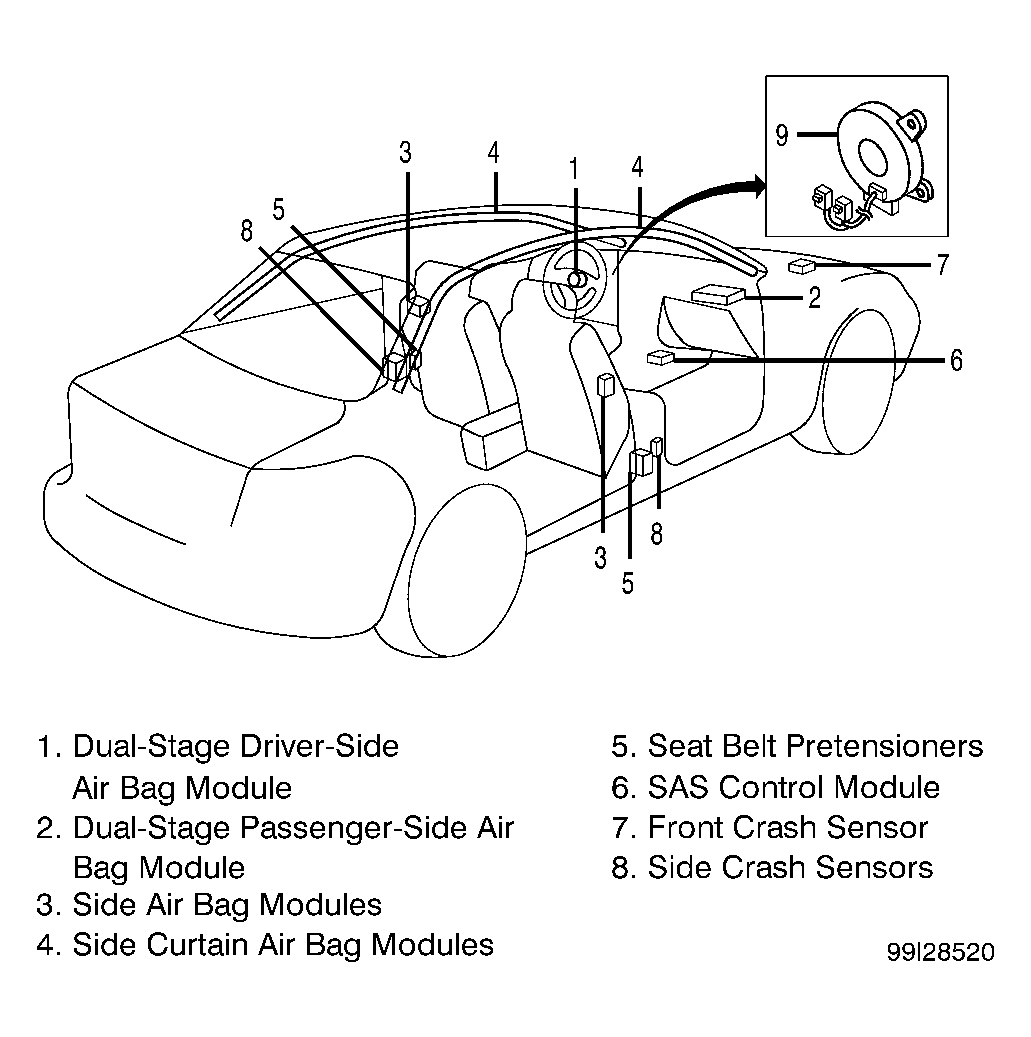

Refer to illustration for component locations. See Fig 1 .
RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Clockspring | On steering column, behind steering wheel |
| Dual-stage driver-side air bag module | Center of steering wheel |
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box |
| Front crash sensor | Next to hood latch, behind radiator grille |
| SAS control module | On tunnel, under center of instrument panel |
| Seat belt buckle switches | Integrated with front seat belt buckles |
| Seat belt pretensioners | Integrated with front seat belt retractors |
| Seat track position sensor | On left front seat track frame |
| Side air bag modules | Outboard bolster of both front seat backs |
| Side curtain air bag modules | Behind right and left sides of headliner, between A-pillar and C-pillar |
| Side crash sensors | In right & left B-pillars |
