Removal & Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Detach clips "A" and remove the upper panel. Disassemble in the order indicated in the illustration. See Fig 1.
NOTE: Remove the ashtray panel using a flatblade screwdriver wrapped with protective tape.
To install, reverse removal procedure.

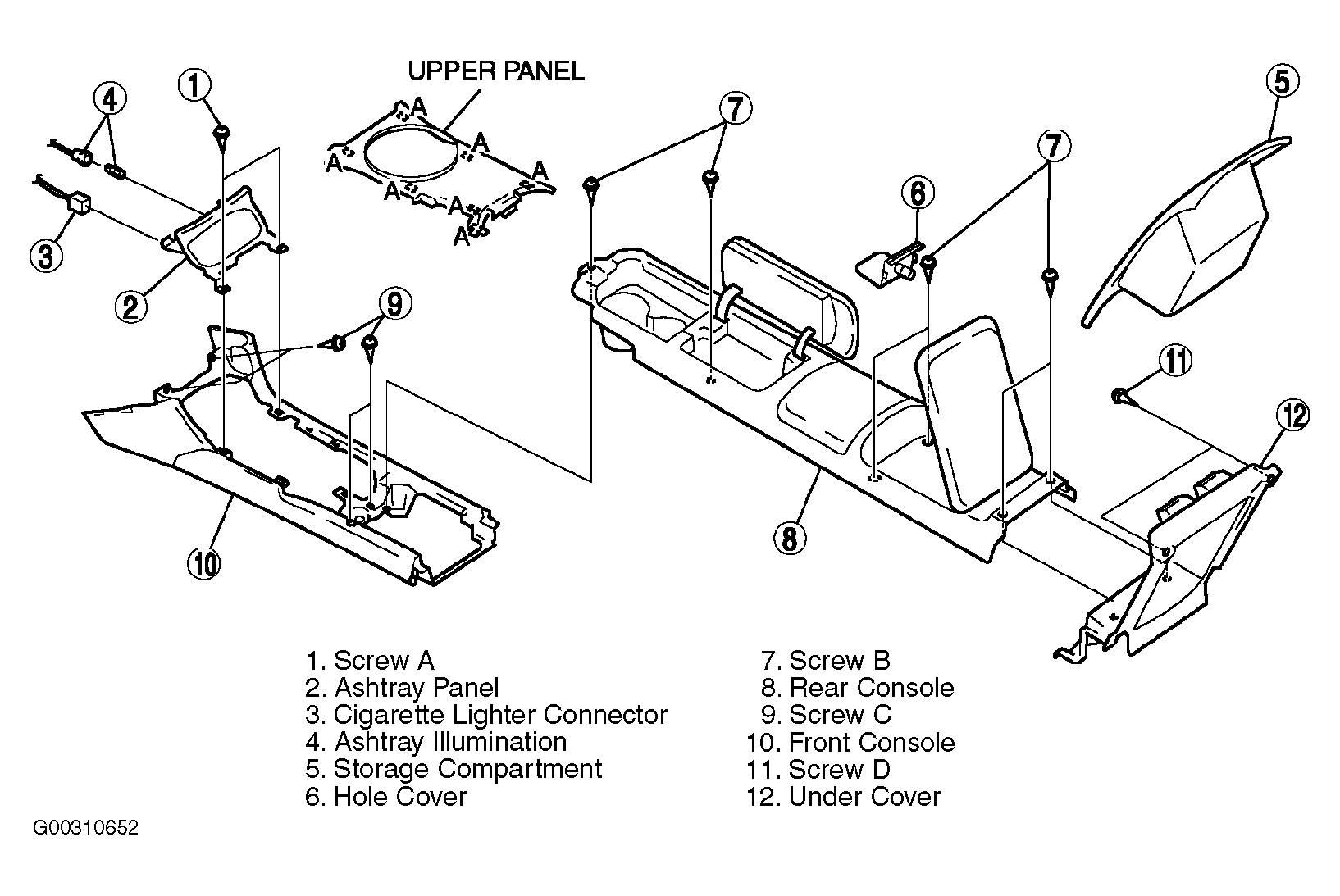

Fig 1: Removing Console

Courtesy of MAZDA MOTORS CORP.
