Caliper Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the exposed area of the piston.

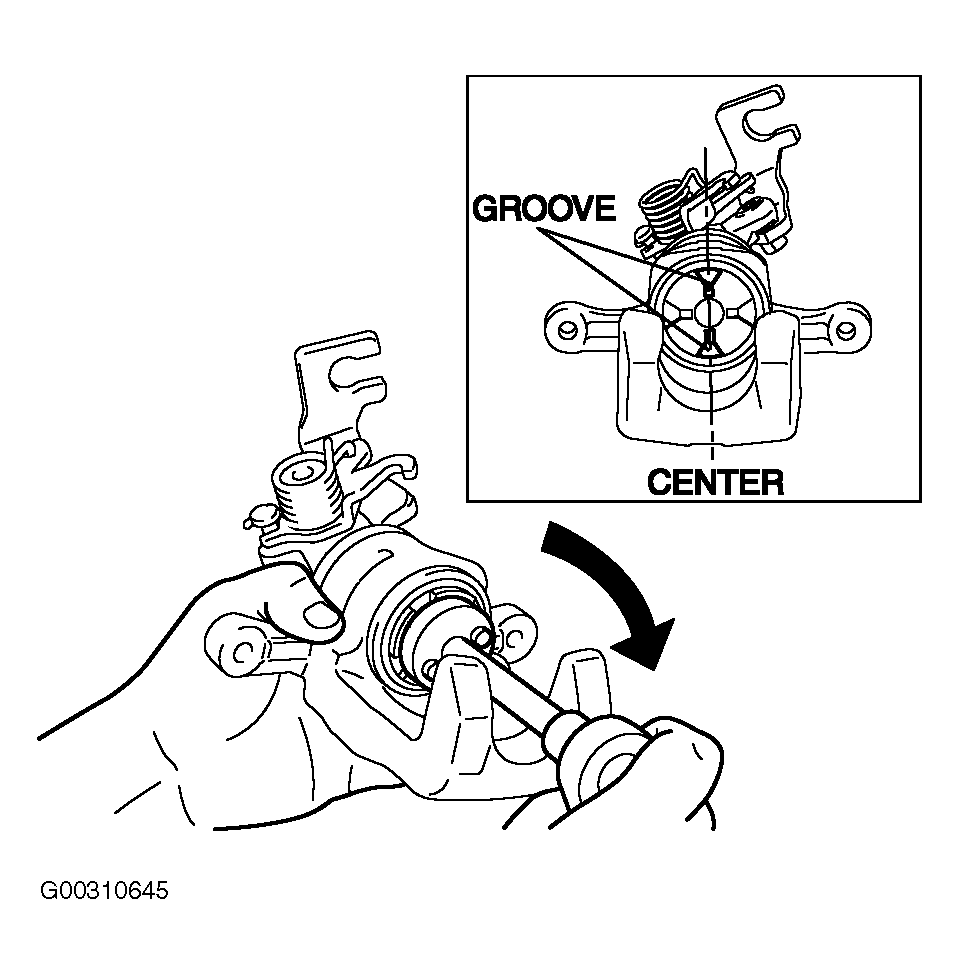

- Rotate the piston clockwise slowly using the Caliper Piston Socket (49-F043-002) and push the piston completely until the piston grooves are in the position shown in the illustration. See Fig 1.
- Install the caliper.
