Lower Arm: Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower arm bolts loosely. See Figure .

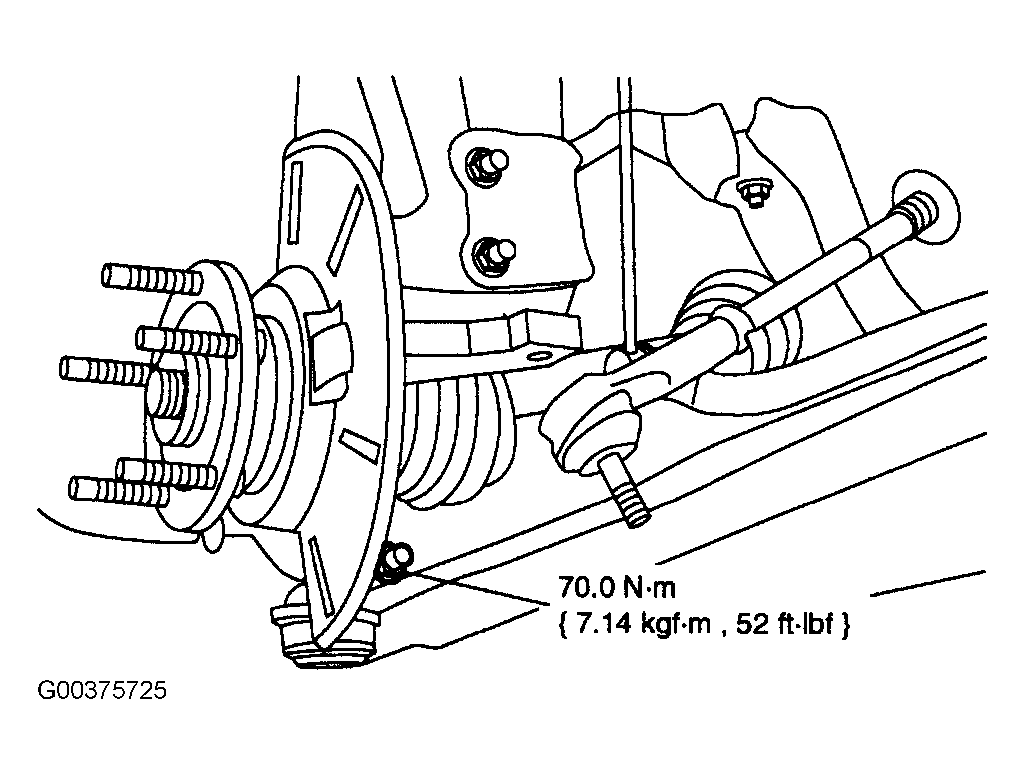

Install the pinch bolt into the wheel knuckle.

Fig 1: Installing Pinch Bolt
Courtesy of MAZDA MOTORS CORP.

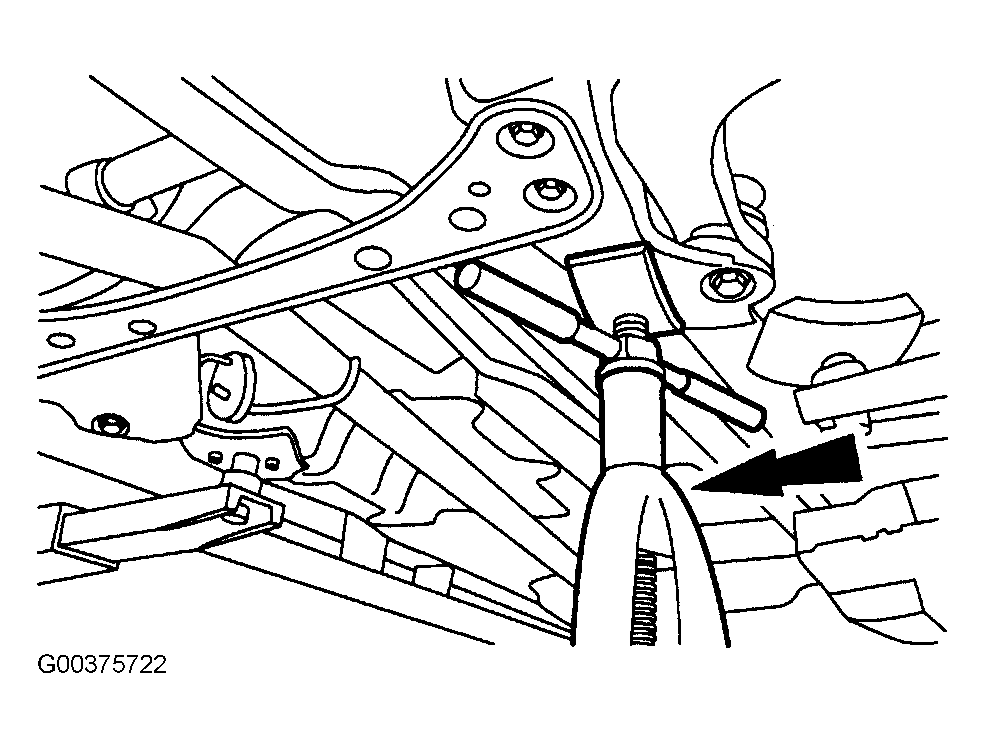

Remove the subframe support. See Figure .
Position the screw jack under the ball joint and raise the ball joint until the previously recorded ride height is achieved.

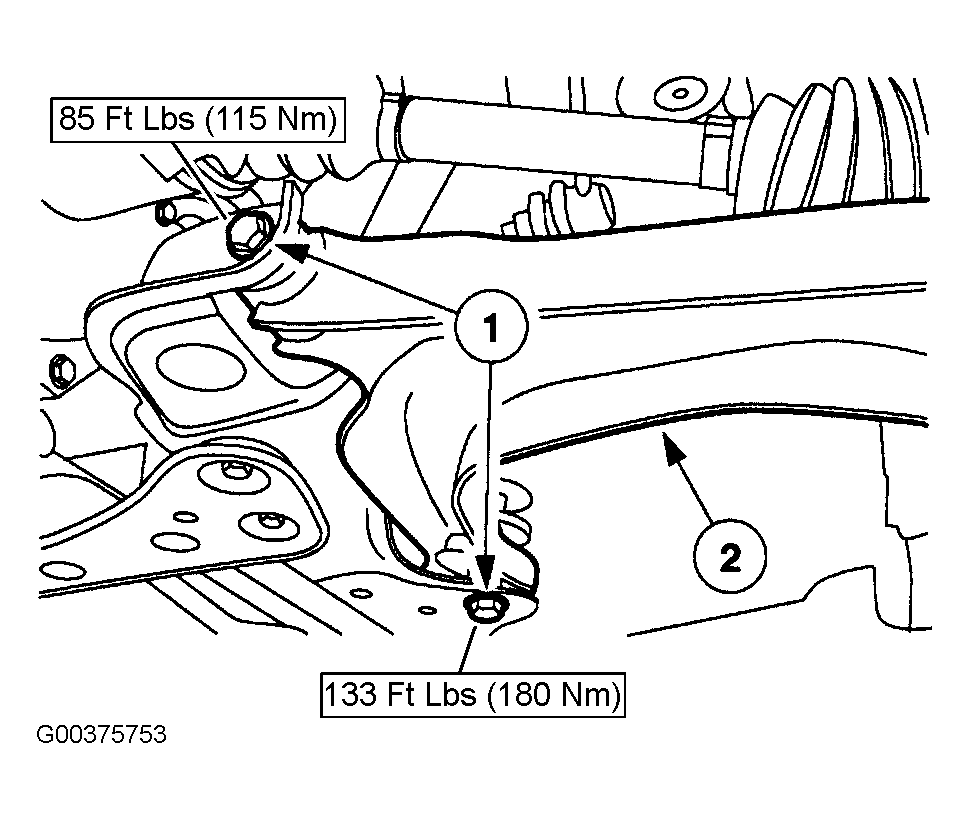

Tighten the lower arm bolts. See Figure .
Remove the screw jack.
Install the wheel and tire.
