Wheel Bearing Check

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle until the front tires are off the floor.

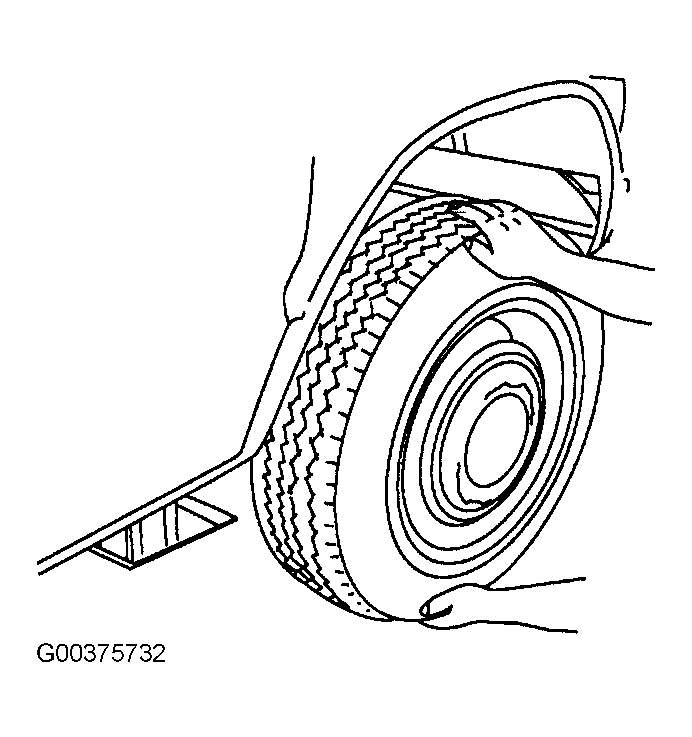

Fig 1: Checking For Rotation On tire
Courtesy of MAZDA MOTORS CORP.
Make sure the wheels are in a straight forward position.
NOTE: Make sure the wheel rotates freely and that the brake pads are retraced sufficiently to allow free movement of the tire and wheel assembly.

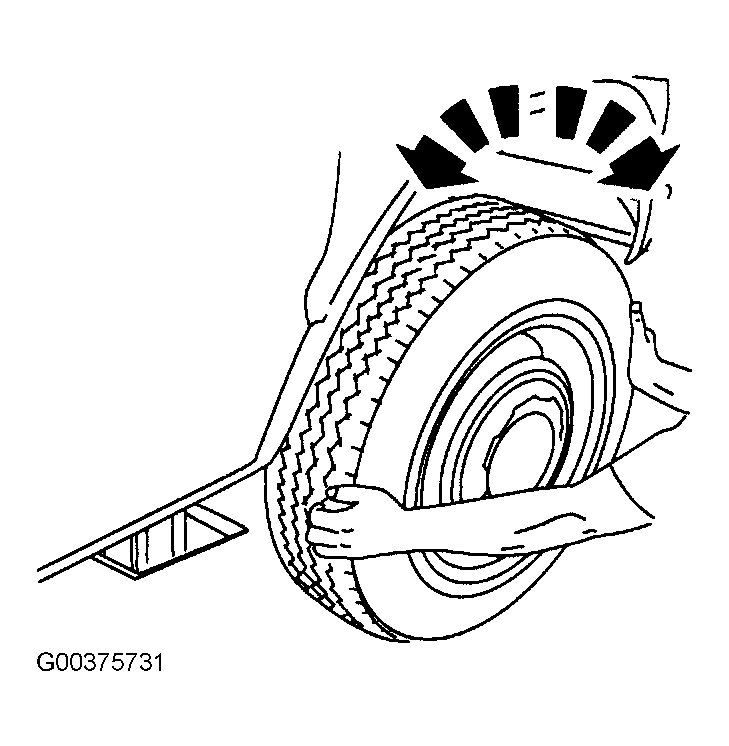

Fig 2: Testing Wheel Bearing
Courtesy of MAZDA MOTORS CORP.
Spin the tire by hand to check the wheel bearings for roughness.

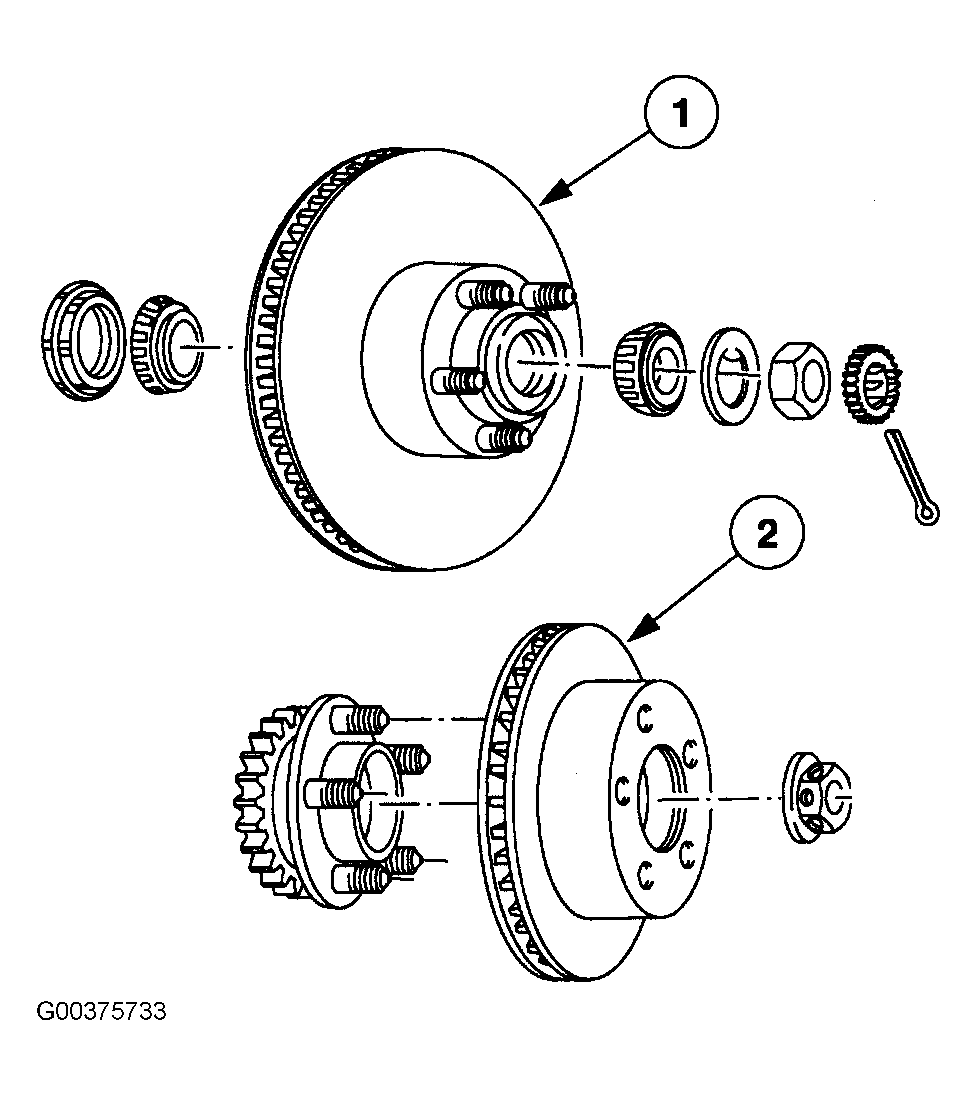

Fig 3: Exploder View Hub Assembly
Courtesy of MAZDA MOTORS CORP.
Grip each front tire at the top and bottom and move the wheel inward and outward while lifting the weight of the tire off the front wheel bearing.
If the tire and wheel (hub) is loose on the spindle, does not rotate freely, or has a rough feeling when spun, carry out one of the following:
1. On vehicles with inner and outer bearings, inspect the bearings and cups for wear or damage. Adjust or install new bearing and cups as necessary.
2. On vehicles with one sealed bearing install a new wheel bearing. For additional information, refer to WHEEL BEARING .
