Wheel Bearing: Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install a new wheel bearing when the wheel hub is removed.

Remove the brake disc. See FRONT BRAKE ROTOR .

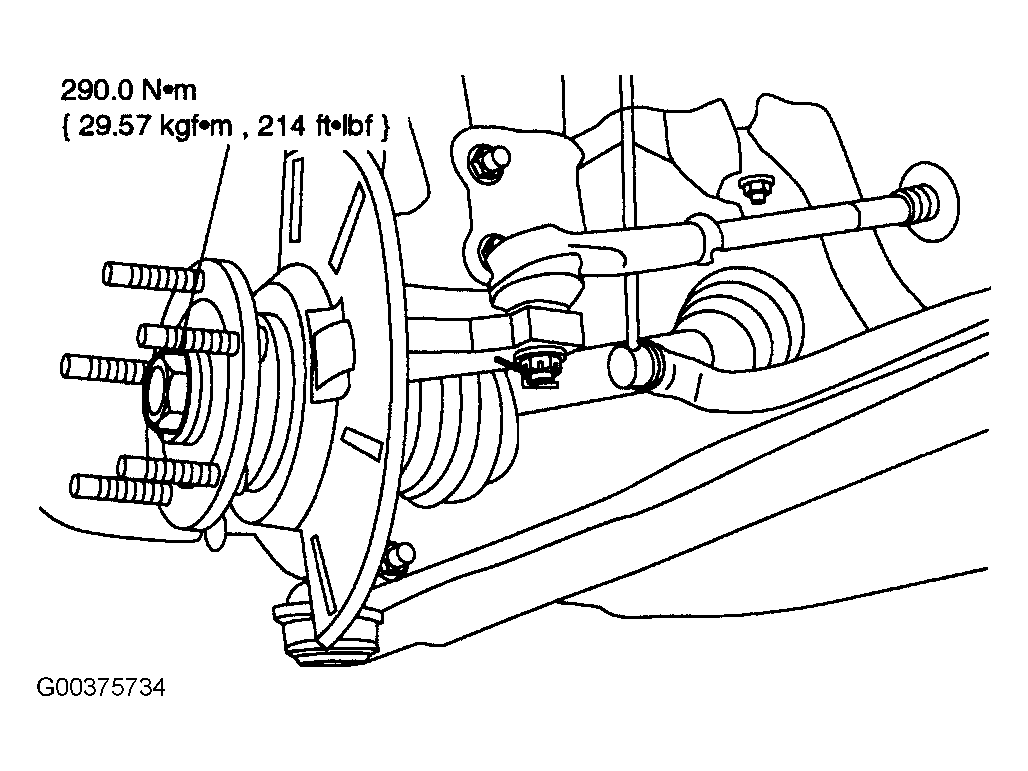

Remove the wheel hub nut.

Fig 1: Removing Wheel Hub Nut
Courtesy of MAZDA MOTORS CORP.

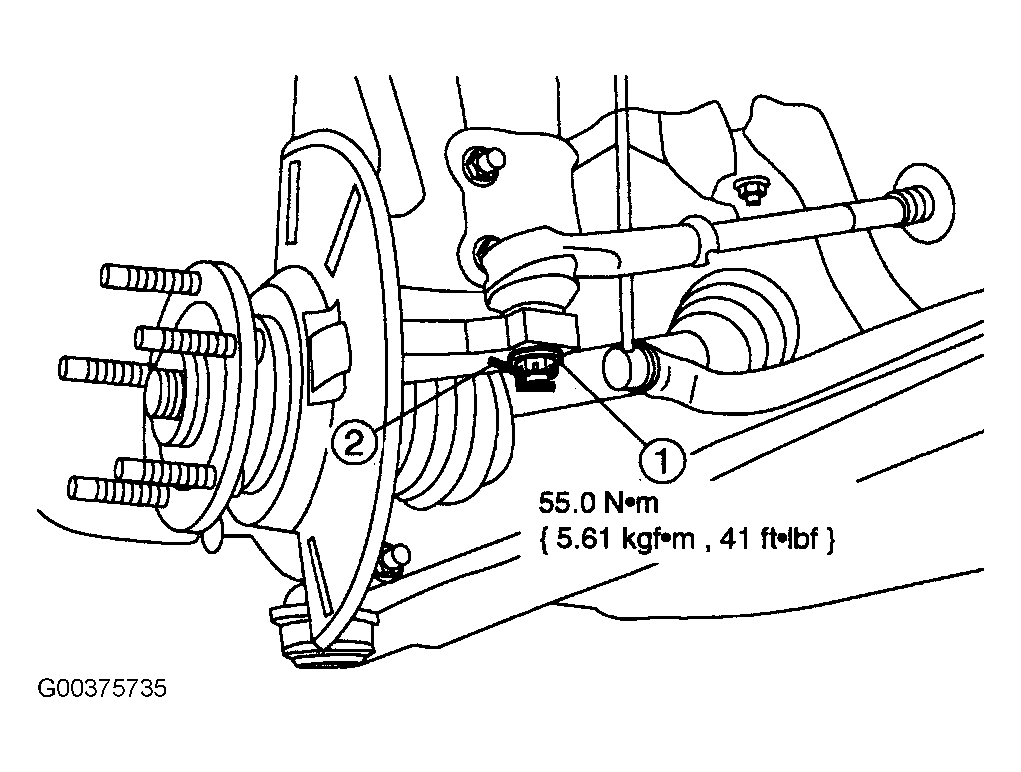

Remove the tie rod end nut. Remove the cotter pin (2). Remove the nut (1).

Fig 2: Removing Tie Rod End Nut
Courtesy of MAZDA MOTORS CORP.

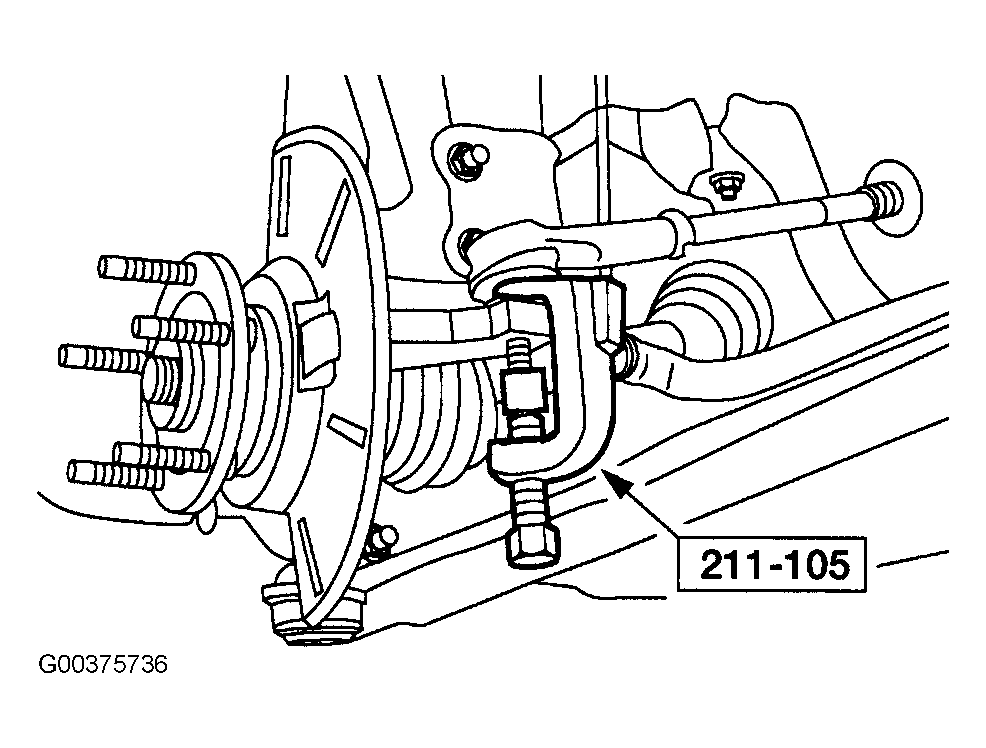

Using the special tool, separate the tie rod end from the knuckle.

Fig 3: Separating Tie Rod End From Knuckle
Courtesy of MAZDA MOTORS CORP.
