Belt Routing: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

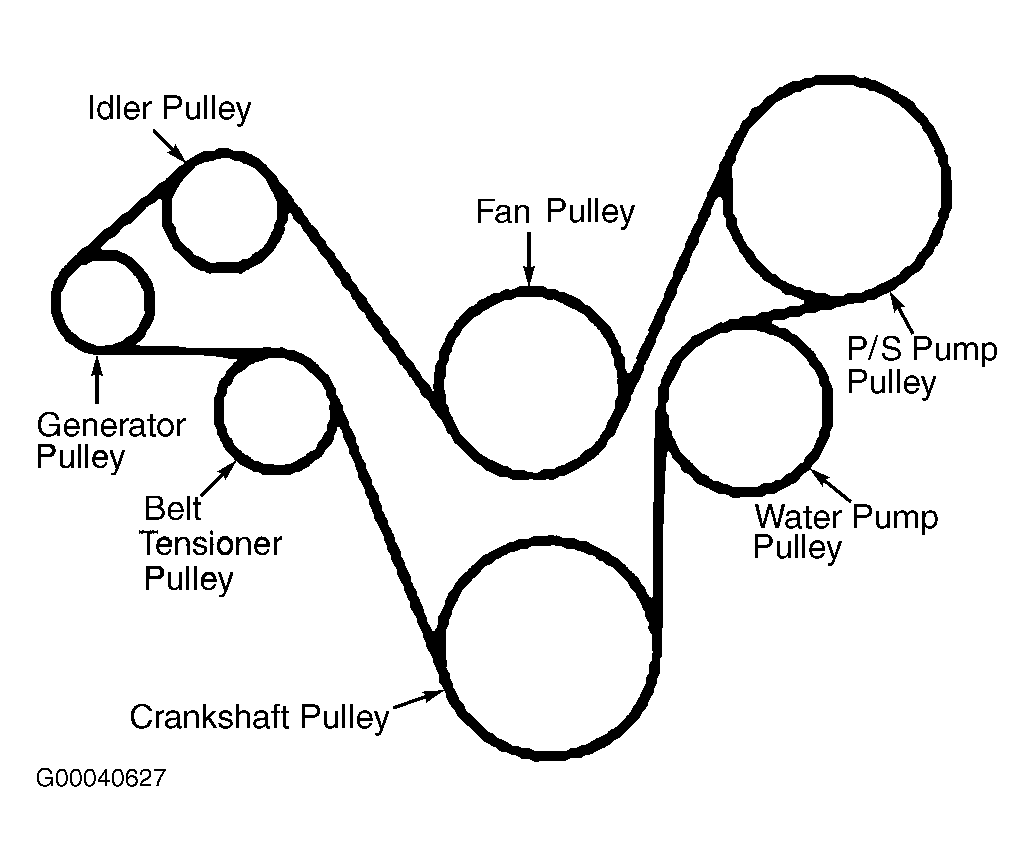

On "B" Series Pickup, Millenia 2.3L V6, MPV and Tribute serpentine belt(s) are automatically adjusted by tensioner. Millenia and MPV are equipped with 2 belts. Replace belt(s) if tensioner indicates belt is out of adjustment range. Use illustration for proper serpentine belt routing. See Figure
-Figure
. No belt routing illustration is available for Miata and MPV.
