Front Door Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front belt line molding is 185 mm {7.3 in}.
Disconnect the negative battery cable.
Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
Disassemble in the order indicated in the illustration.
Assemble in the reverse order of disassembly.

Fig 1: Setting Window Height

Courtesy of MAZDA MOTORS CORP.

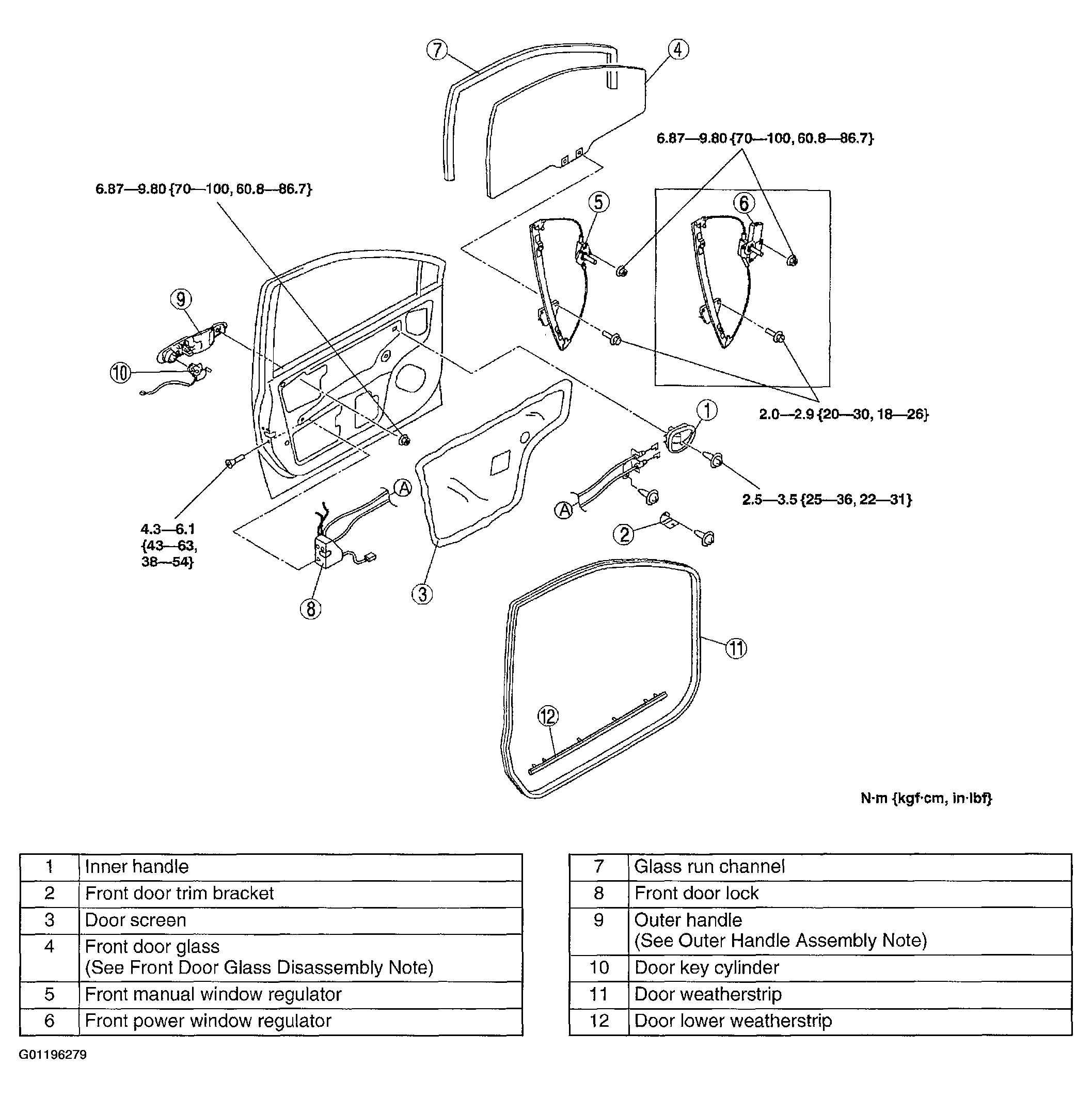

Fig 2: Exploded View Front Door

Courtesy of MAZDA MOTORS CORP.
