Dashboard Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration.
Assemble in the reverse order of disassembly.

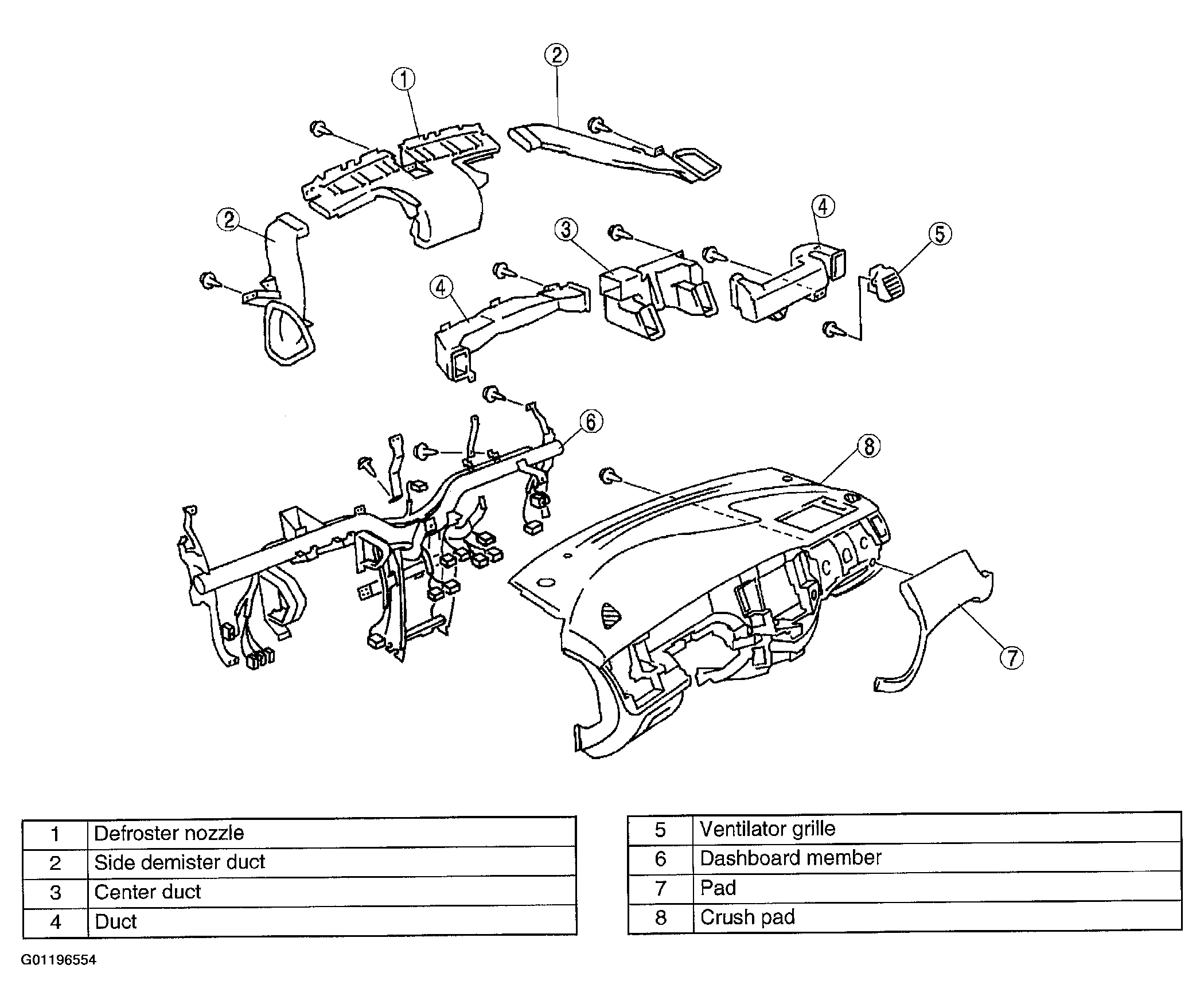

Fig 1: Disassembling Dashboard

Courtesy of MAZDA MOTORS CORP.
