Front Door Trim Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the regulator handle if equipped with a manual window.
- Remove the inner garnish.
- Remove the screw to remove the inner handle.
- Turn over the recess cover to remove the screw.
- Remove the screw.
- Remove the fasteners.

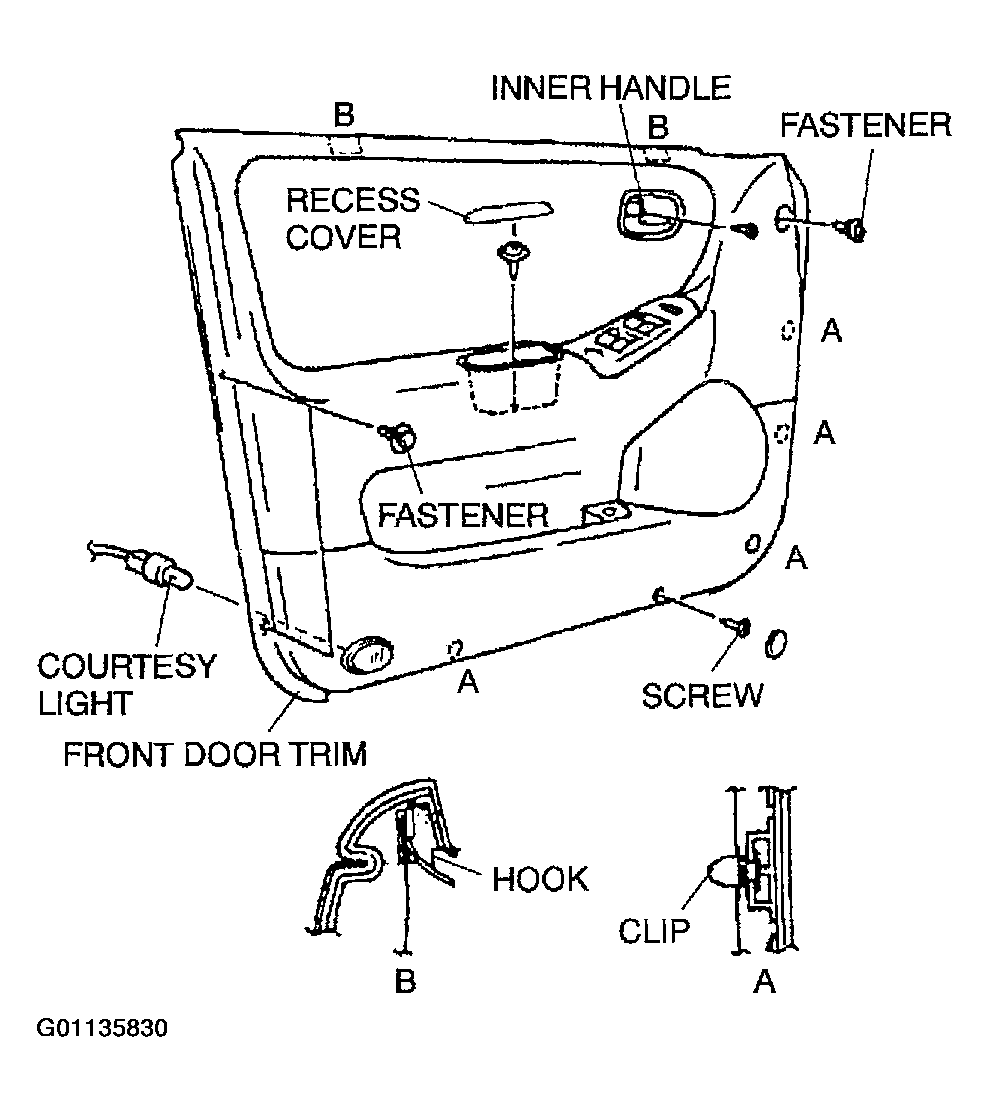

- Pull the front door trim to disengage clips A from the body.
- Pull the front door trim upward to disengage hooks B from the body.
- Disconnect the trunk lid opener switch connector.
- Disconnect the connector if equipped with a power window.
- Disconnect the courtesy light.
- Install in the reverse order of removal.
