Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fasteners.
Pull the trunk end trim upward to disengage clips A and pins B from the body.

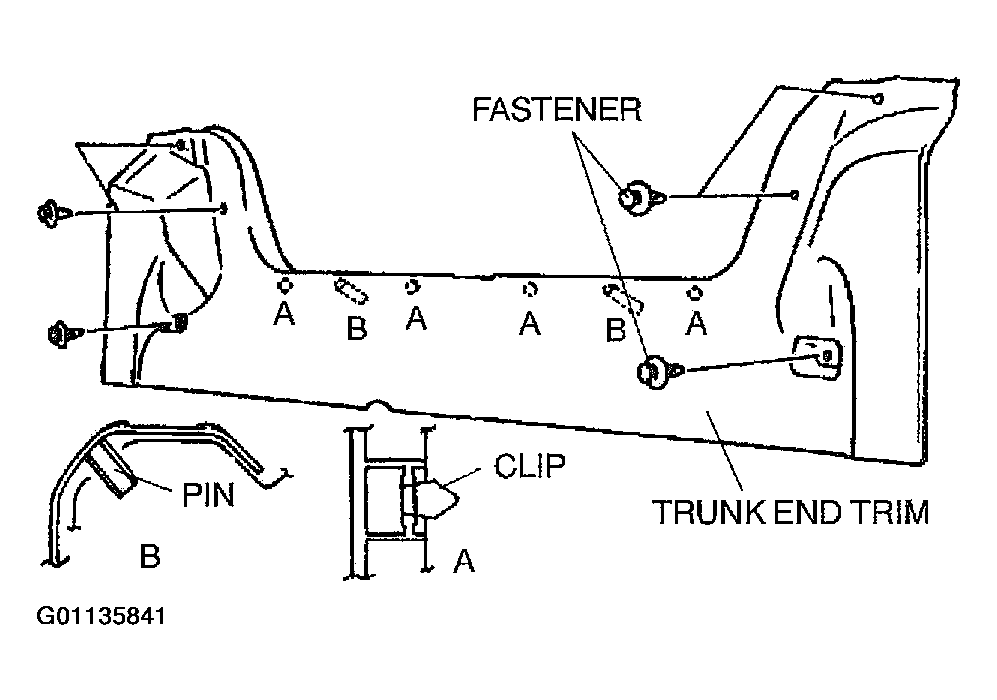

Fig 1: Removing/Installing Trunk End Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
