Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

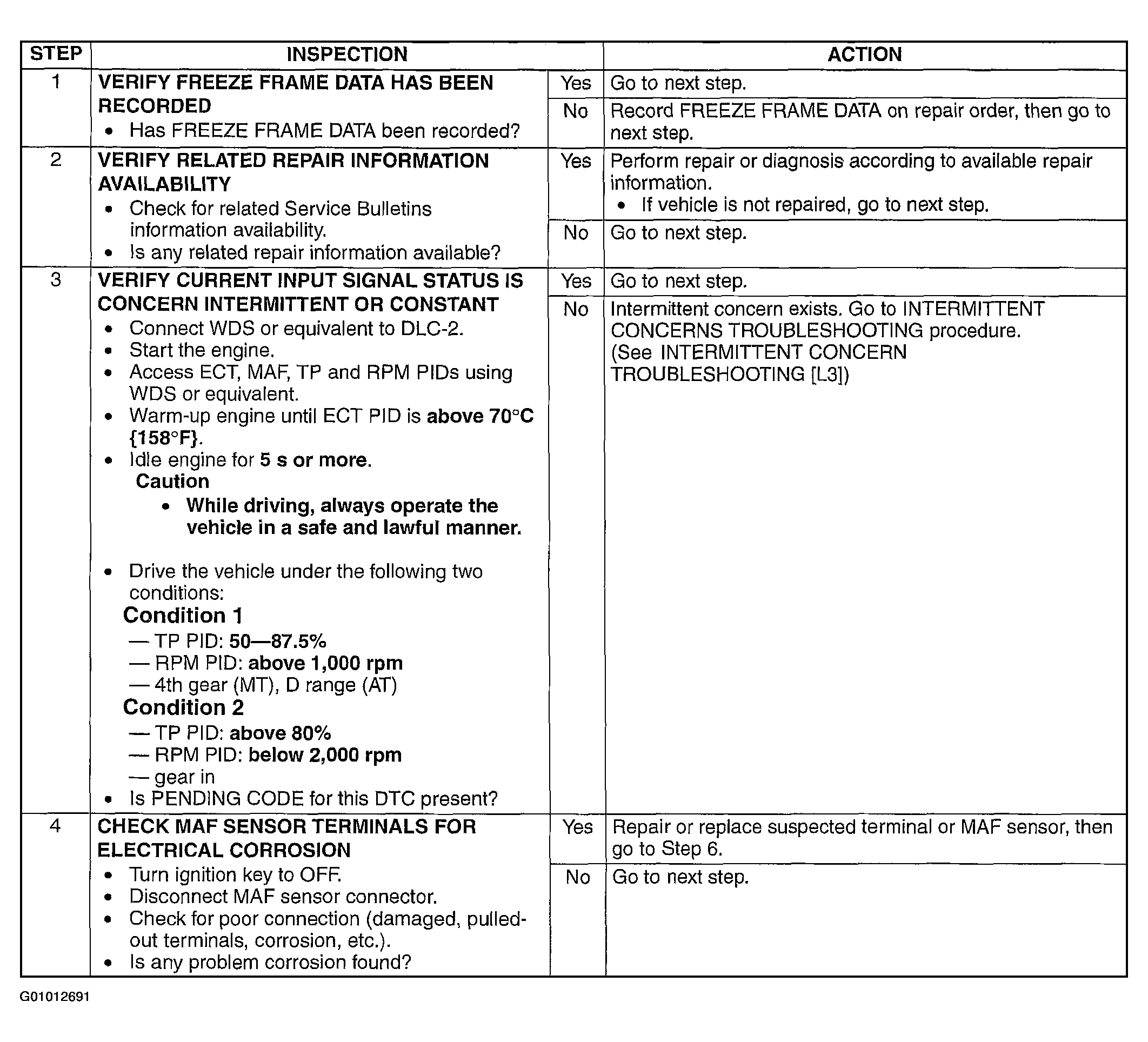

Fig 1: DTC P0101 - Diagnostic Procedure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

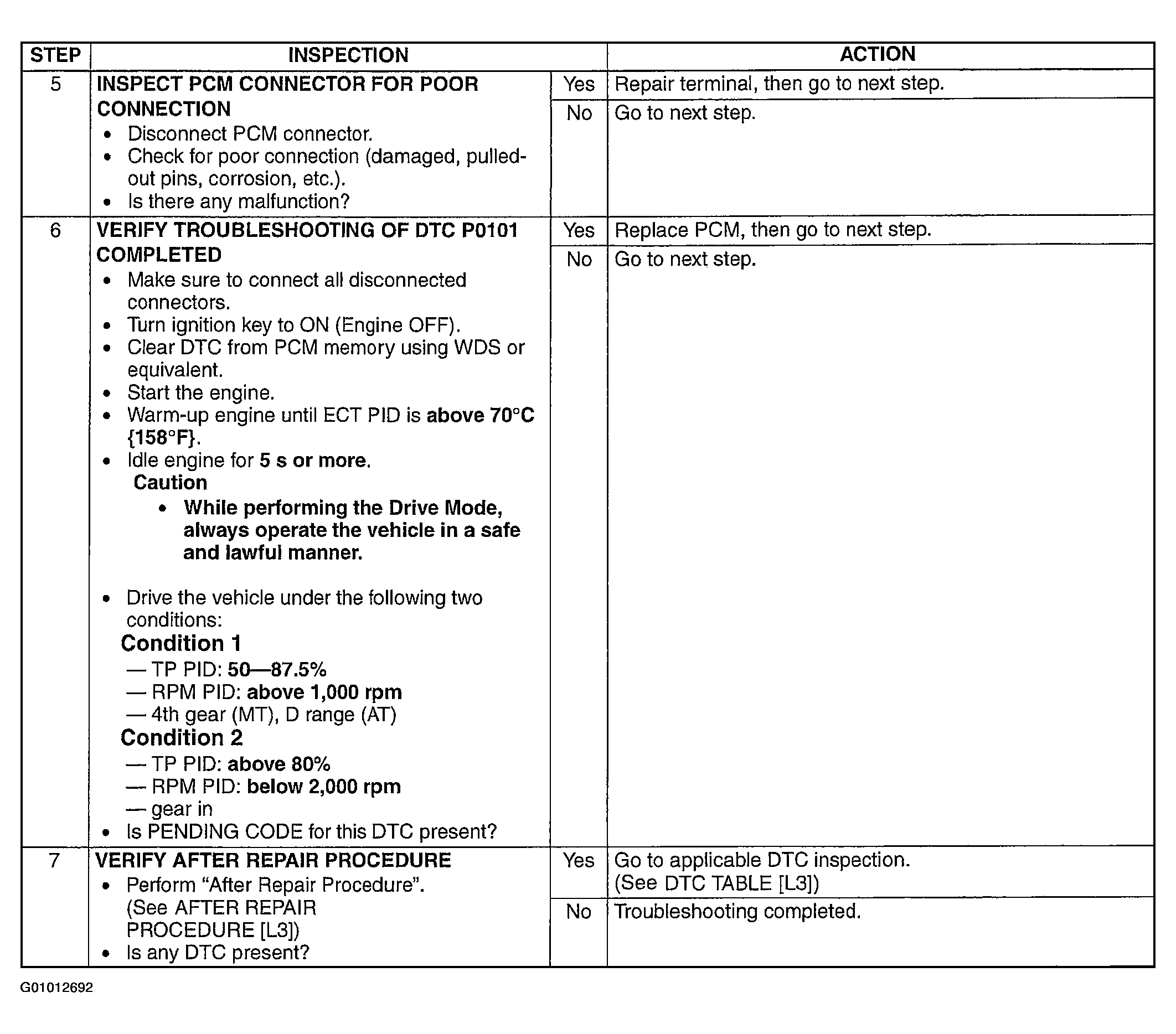

Fig 2: DTC P0101 - Diagnostic Procedure Chart (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.
