DTC P2196: Front Ho2S Signal Stuck Rich: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

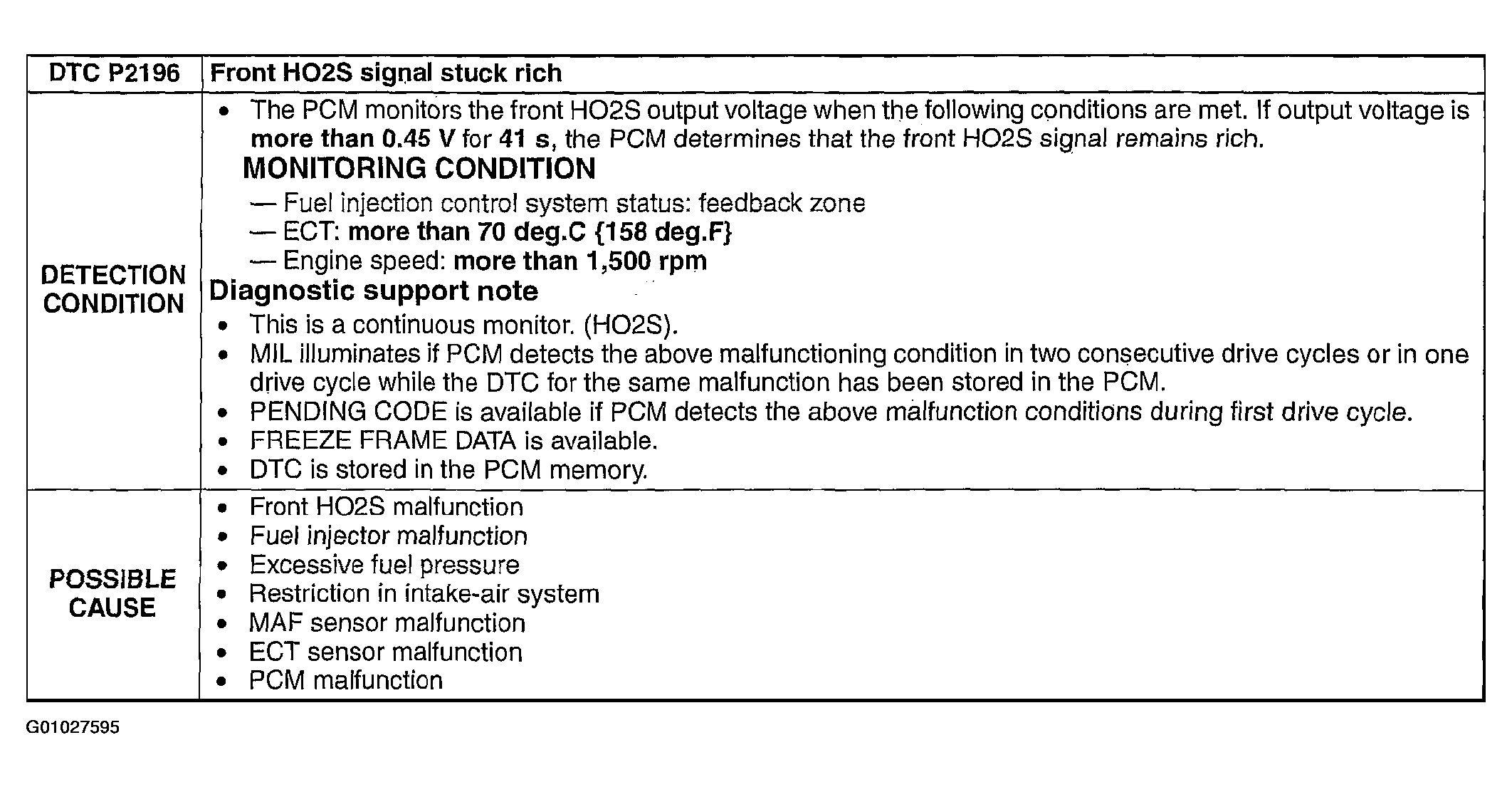

Fig 1: DTC P2196 - Detection Conditions & Possible Causes

Courtesy of MAZDA MOTORS CORP.
