Water Pump Removal/Installation: L3

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
Remove in the order indicated. See Fig 1.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

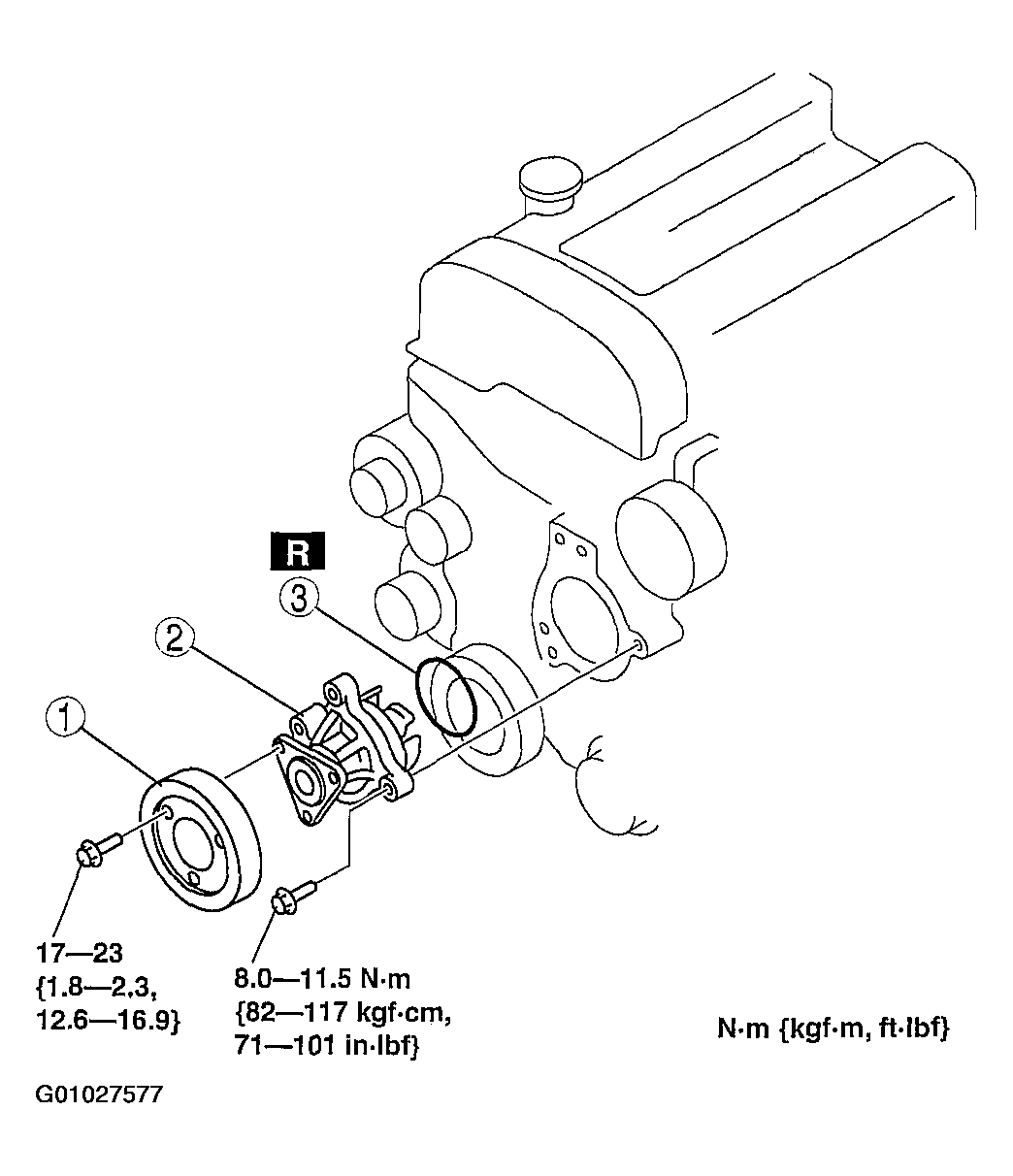

Fig 1: Water Pump Removing Sequence (L3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Water Pump (L3)

Courtesy of MAZDA MOTORS CORP.
