Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front side marker lights. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION  .)
  4. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in Fig 1 .
    Fig 1: Removing Order Of Front Fender Panel
    G01344268Courtesy of MAZDA MOTORS CORP.

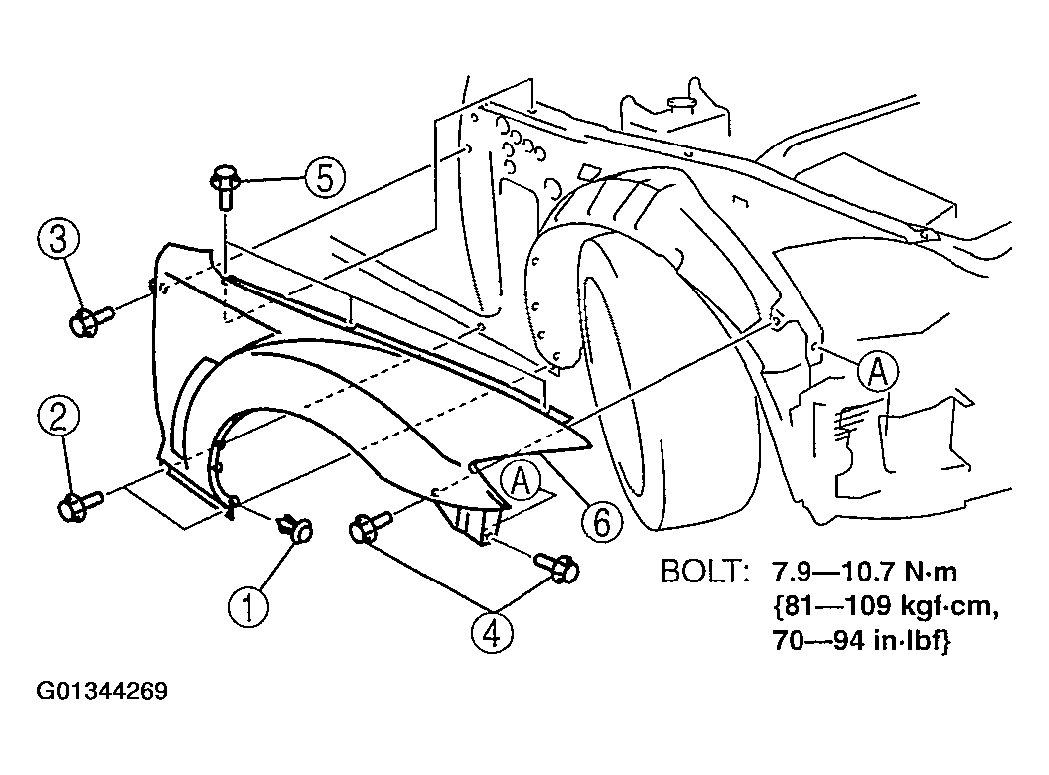

    Fig 2: Removing/Installing Front Fender Panel
    G01344269Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
