Rear Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear combination lights. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Remove the fasteners.
  6. Pull the rear bumper guard outward, detach tabs A, and then remove the rear bumper guard.
    Fig 1: Removing Rear Bumper Guard
    G01344262Courtesy of MAZDA MOTORS CORP.
  7. Remove in the order indicated in Fig 2 .
    Fig 2: Removing Order Of Rear Bumper
    G01344263Courtesy of MAZDA MOTORS CORP.

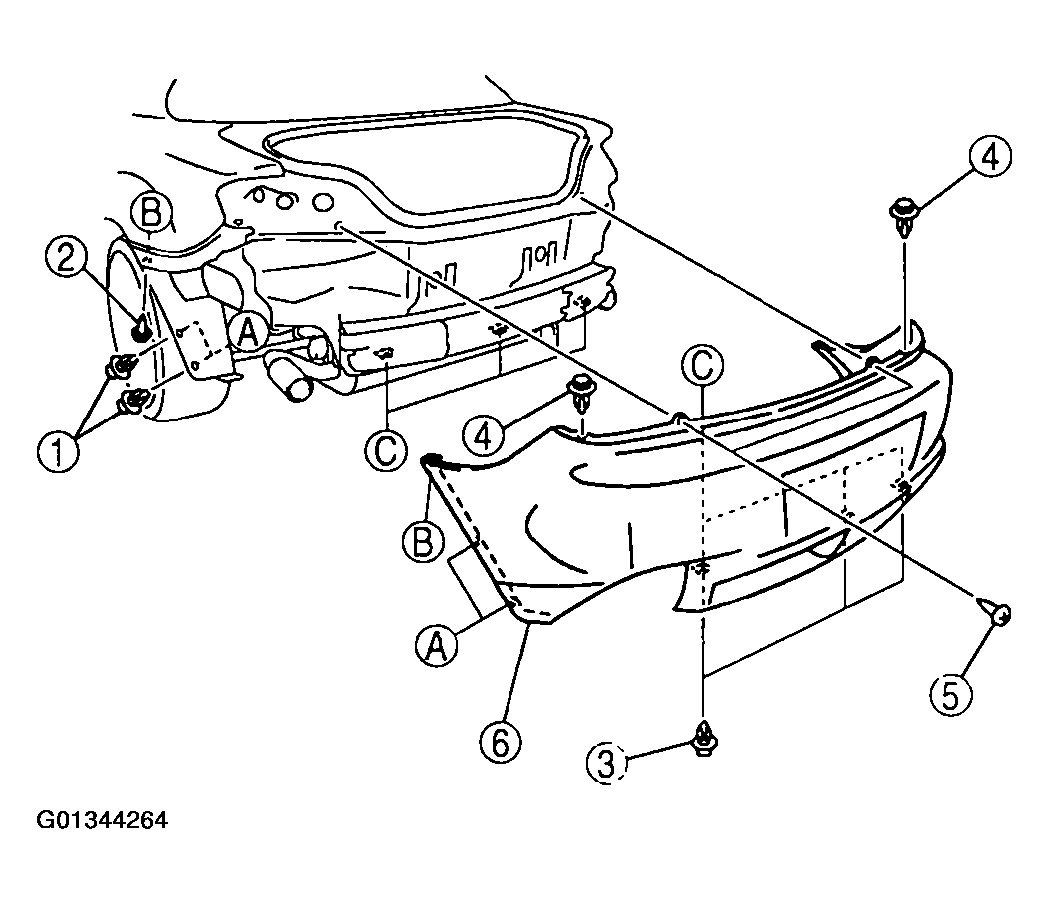

    Fig 3: Removing/Installing Rear Bumper
    G01344264Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
