Fan Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the fresh-air duct.
Remove in the order indicated in the table.

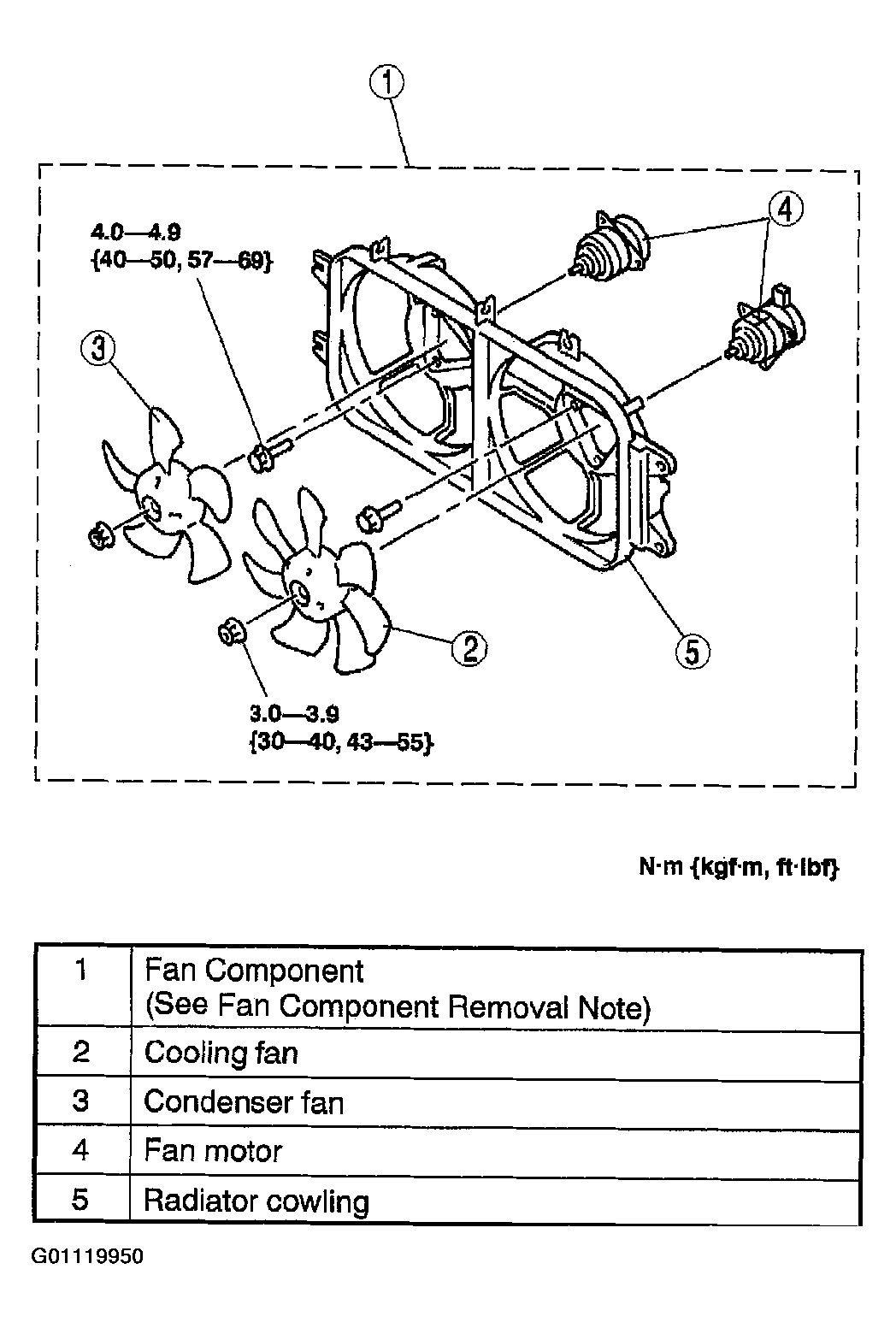

Fig 1: Identifying Fan Motor Removal/Installation
Courtesy of MAZDA MOTORS CORP.
