Expansion Valve Assembly Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Attach the insulator as shown in the Fig 1 .

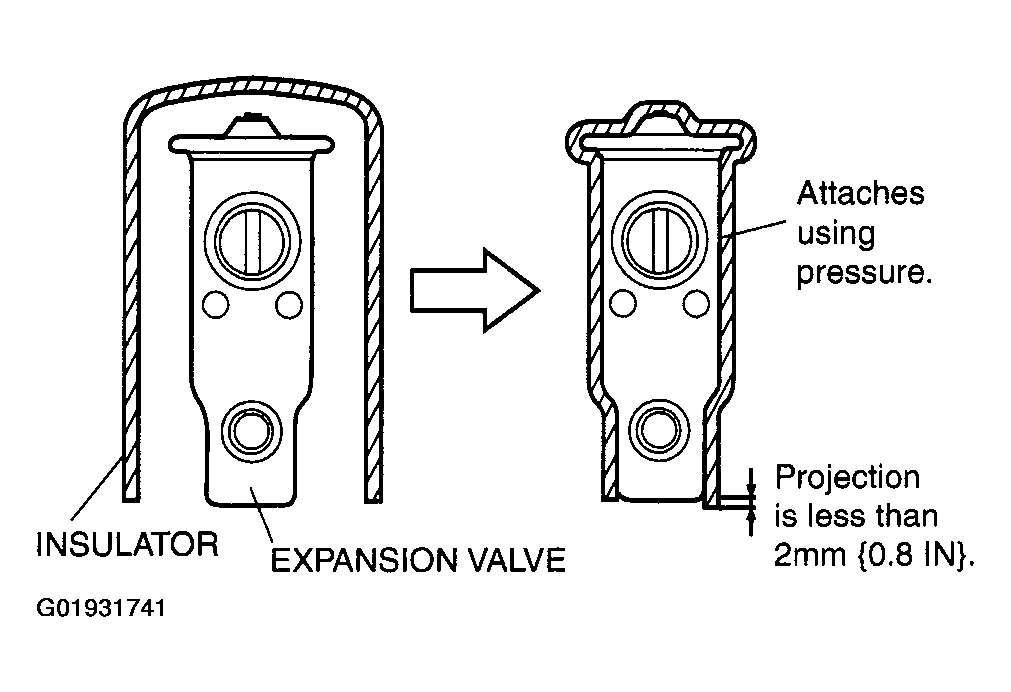

Fig 1: Attaching Insulator
Courtesy of MAZDA MOTORS CORP.
