Section 309 (Security System And Locks System)
›
Power Door Lock System Wiring Diagram
Power Door Lock System Wiring Diagram
WARNING:
This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

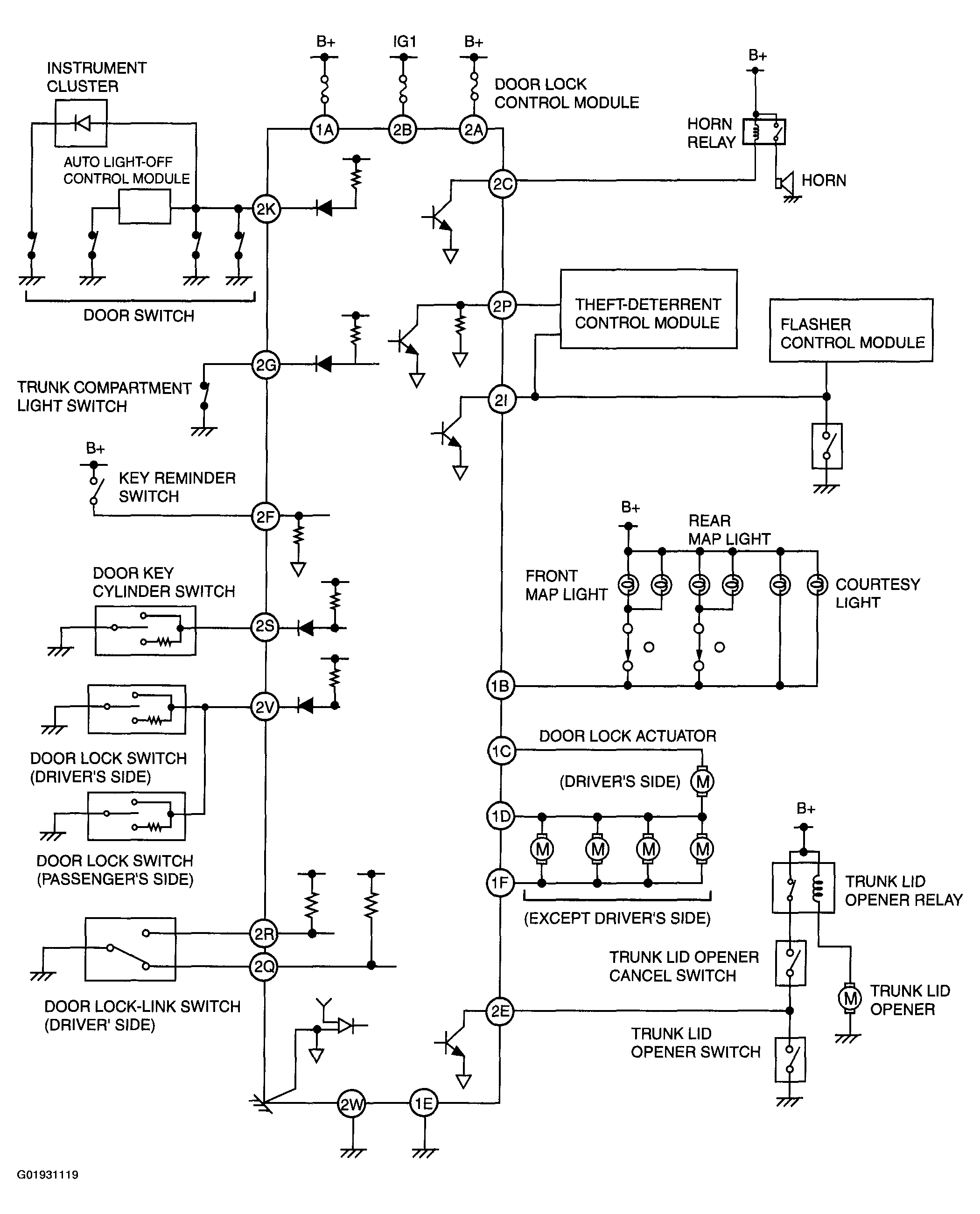

Fig 1: Wiring Diagram - Power Door Lock System
Courtesy of MAZDA MOTORS CORP.
