Center Box Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center panel module.
Remove the screws.
Pull the center box outward, then disengage the tabs.
Disconnect the information display connector.

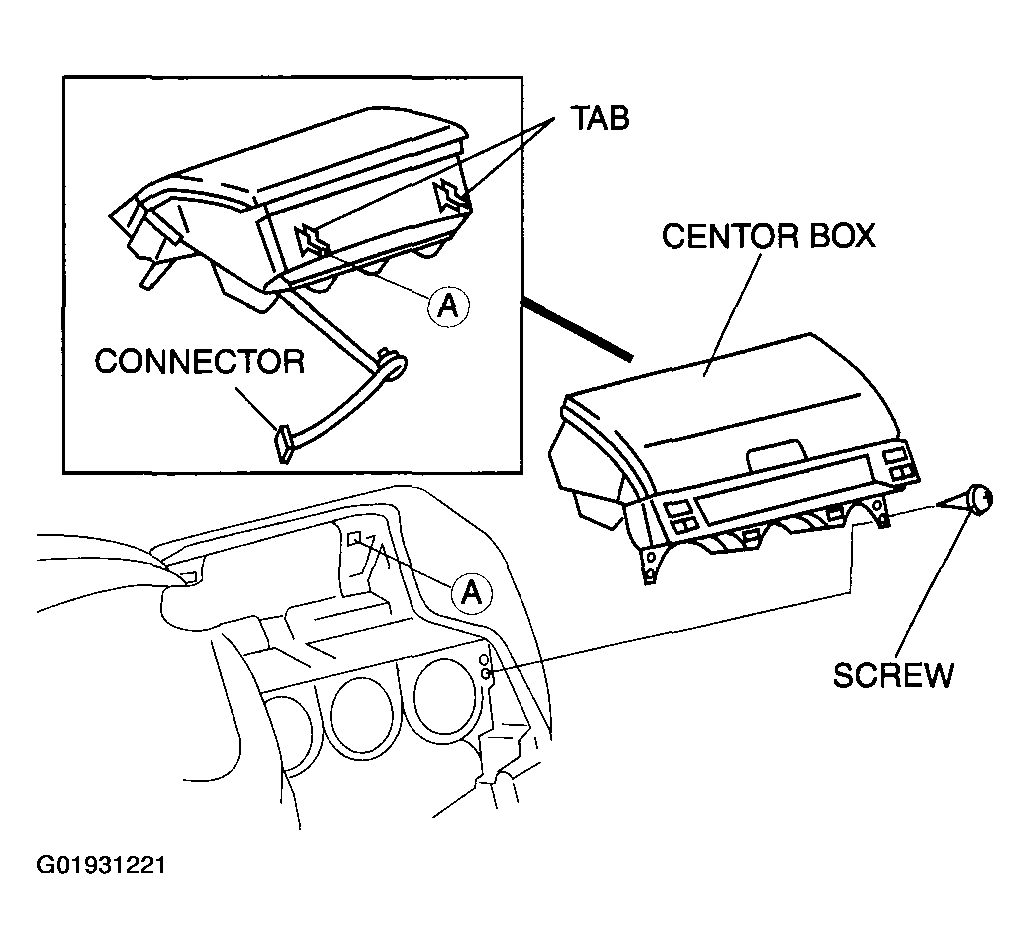

Fig 1: Removing Center Box And Disconnecting Information Display Connector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
