Column Cover Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Detach the fitting parts of the upper column cover from the meter hood rubber.
Remove the upper column cover.
Remove the ignition key illumination.
Remove the screws.
Remove the lower column cover.

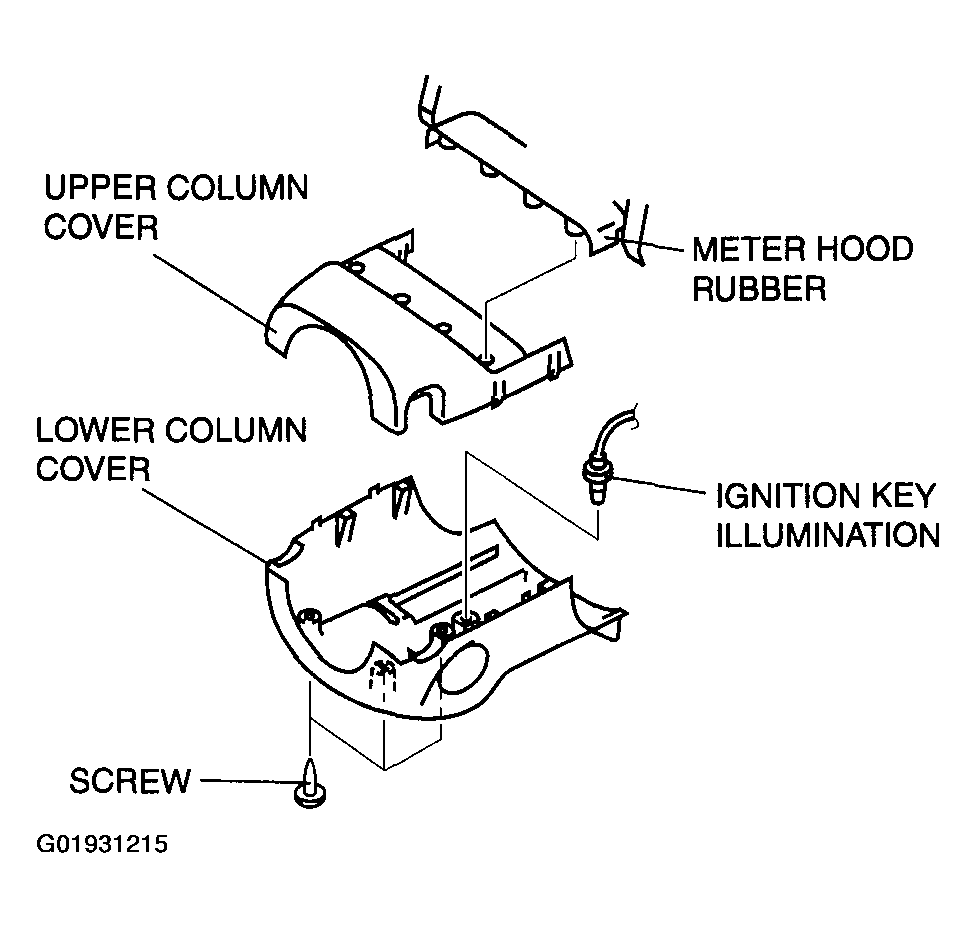

Fig 1: Removing Upper And Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
