Rotary Blade Coupling Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool

Courtesy of MAZDA MOTORS CORP.

Using the special tool, remove the pinion nut.

Fig 2: Identifying Pinon
Courtesy of MAZDA MOTORS CORP.
NOTE:
- A small punch that can be inserted between the end yoke spline and pinion gear is required.
Using a punch, mark one of the splines on the yoke.

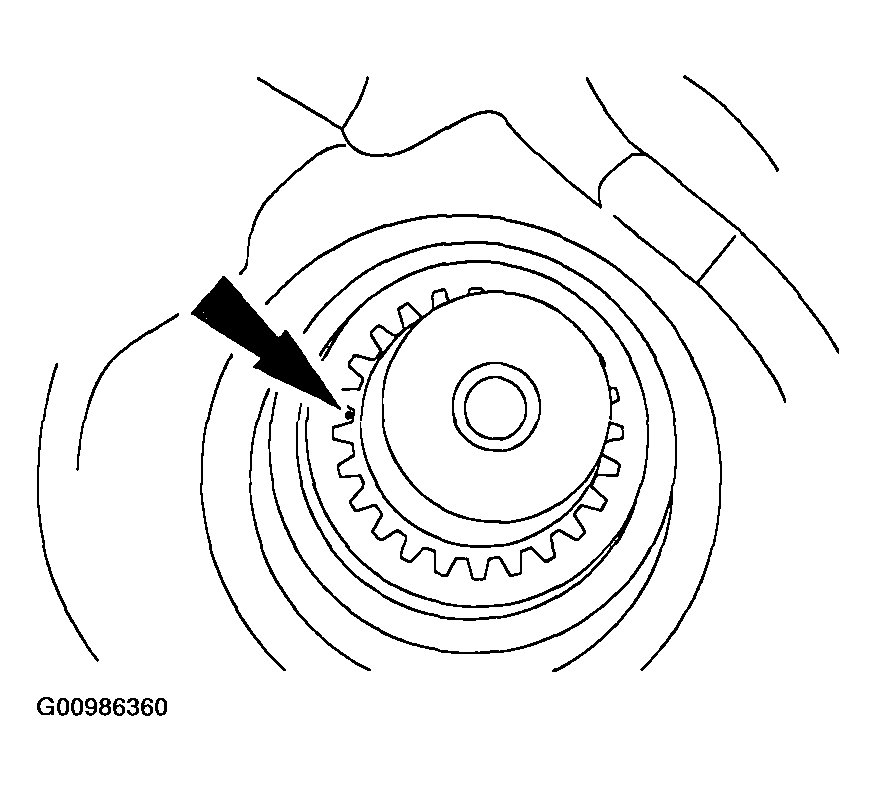

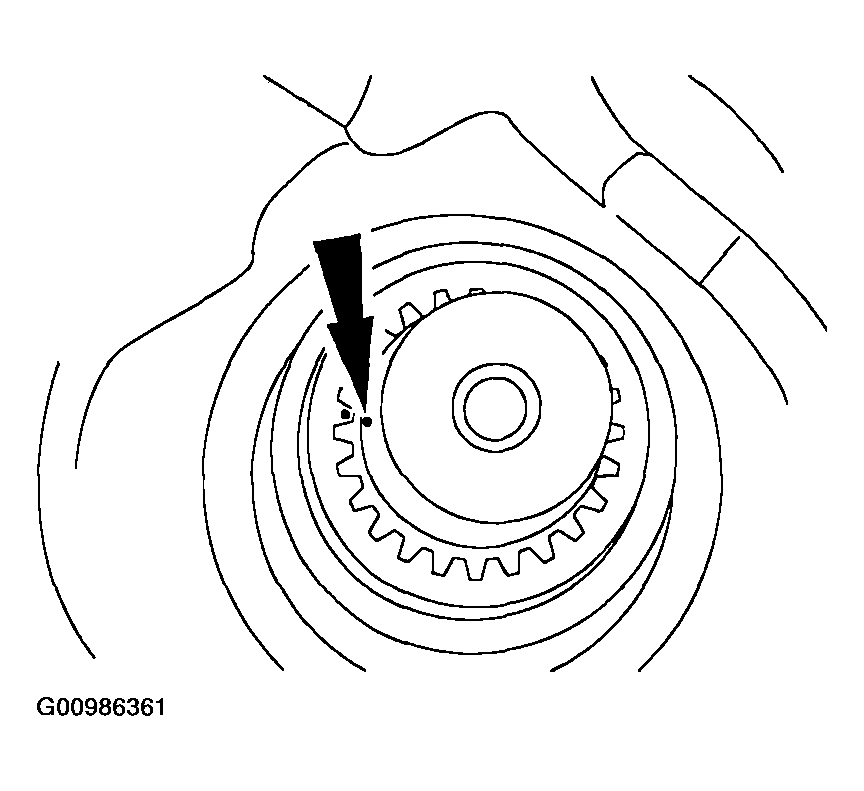

Fig 3: Locating Mark One Of Splines On Yoke
Courtesy of MAZDA MOTORS CORP.
Mark the corresponding spline on the pinion gear.
Remove the yoke.

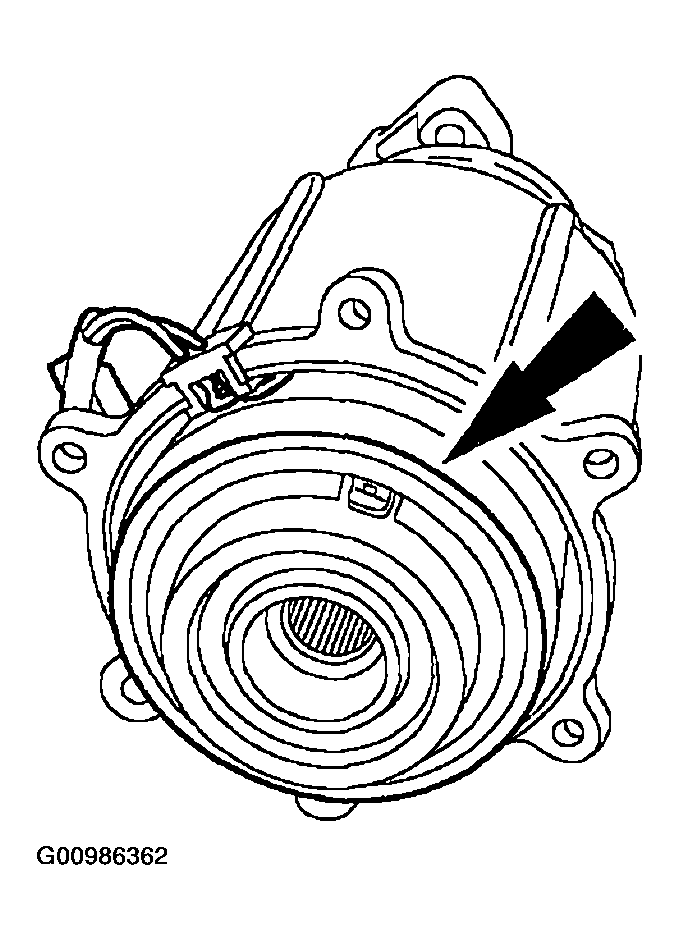

Fig 4: Remove Clutch Assembly From Housing
Courtesy of MAZDA MOTORS CORP.
Remove the clutch assembly from the housing.

Fig 5: Identifying Bolts And Clutch Shaft
Courtesy of MAZDA MOTORS CORP.
Remove the four bolts and the clutch shaft.
Inspect the clutch shaft and replace as required

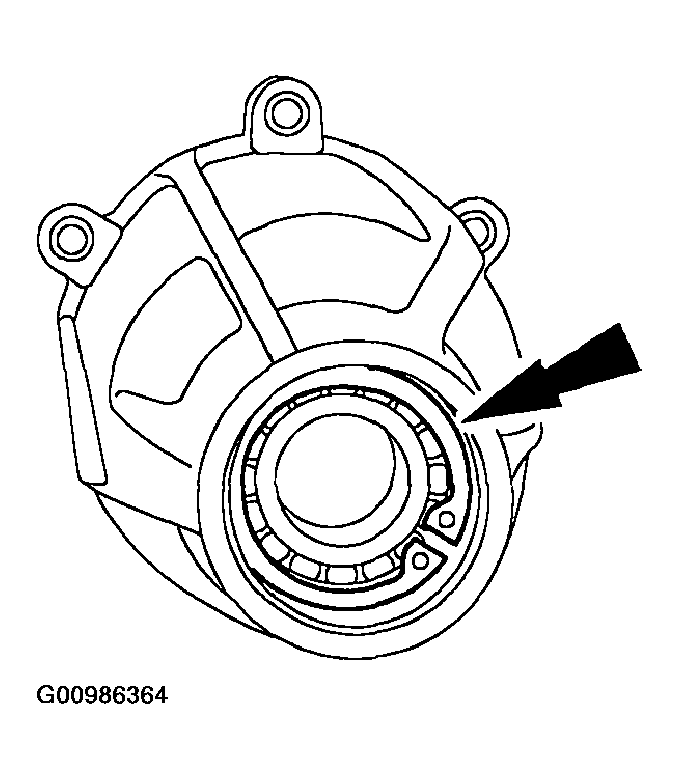

Fig 6: Locating Snap Ring
Courtesy of MAZDA MOTORS CORP.
Remove the snap ring.

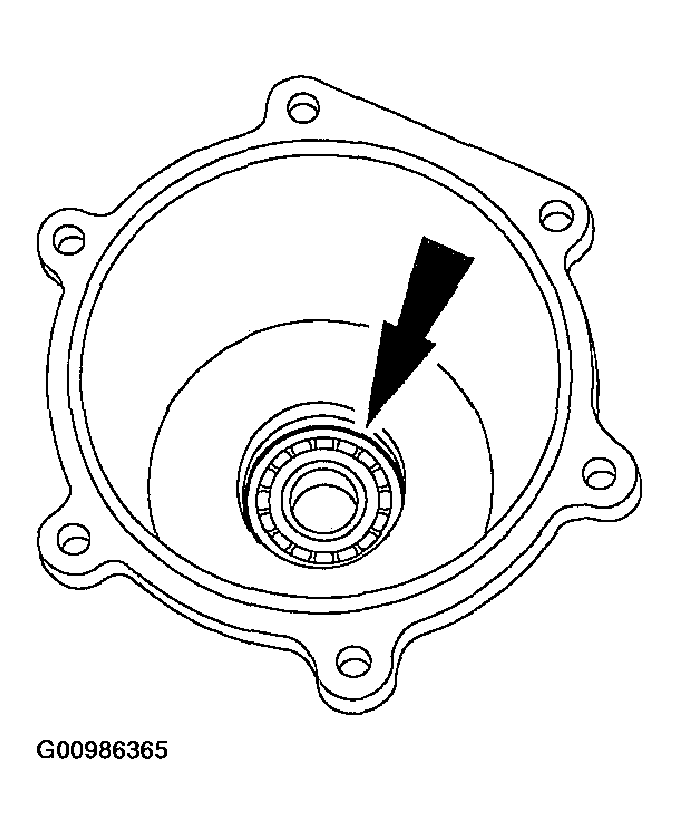

Fig 7: Locating Bearing In The Housing
Courtesy of MAZDA MOTORS CORP.
Using a brass drift and hammer, drive the bearing out of the housing.
1. Discard bearing.
