Rotary Blade Coupling: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure the machined surfaces on the rear axle housing, the differential housing cover and the rotary blade coupling housing are clean and free of oil before installing the new silicone sealant. The inside of the rear axle must be covered when cleaning the machined surface to prevent contamination.
  1. Clean the gasket mating surfaces of the differential housing, the differential housing cover and the rotary blade coupling housing.
    NOTE:
    • Make sure the grommet is seated all the way in the slot.
    NOTE:
    • The rotary blade coupling assembly must be installed within 5 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has properly cured.
  2. Apply a new continuous bead of clear silicone rubber to the rotary blade coupling housing. Make sure the bead covers 360 degrees around each bolt hole and that the wiring grommet does not touch or damage the new silicone bead,

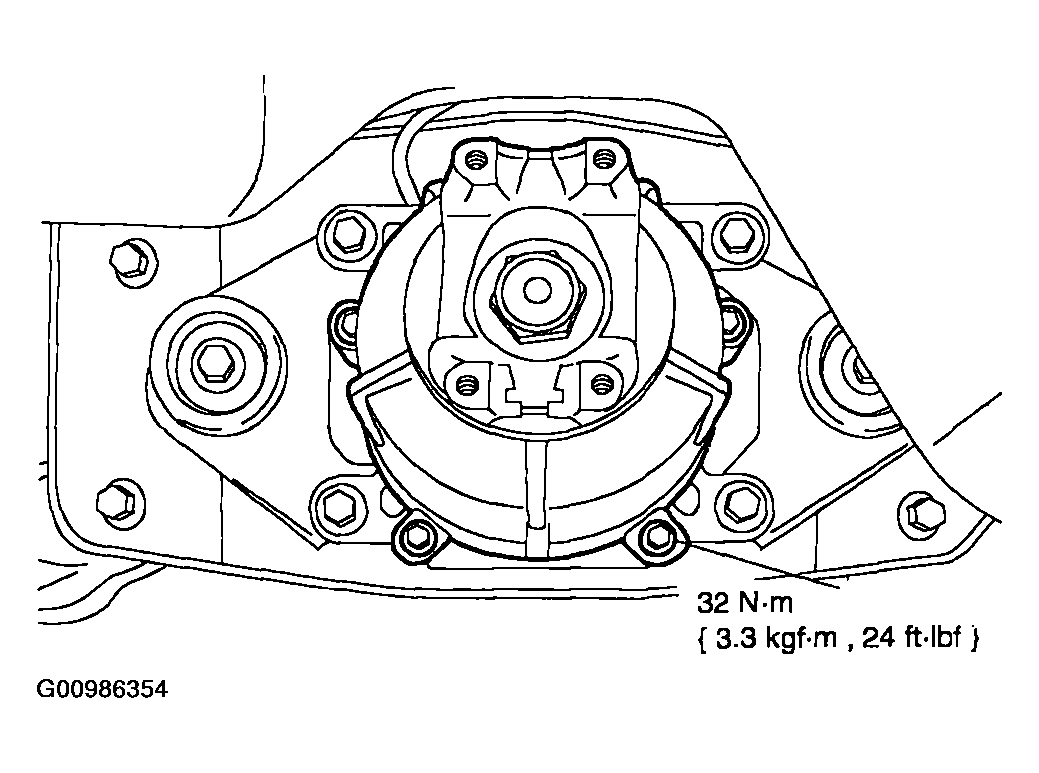

    Fig 1: Installing Rotary Blade Coupling Assembly And Six Bolts
    G00986354Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The rubber wiring grommet must be guided into the slot on the differential housing during installation of the RBC unit. Use the rubber grommet to align the two teeth of the RBC unit with the slots in the differential case.
  3. Install the rotary blade coupling assembly and six bolts.

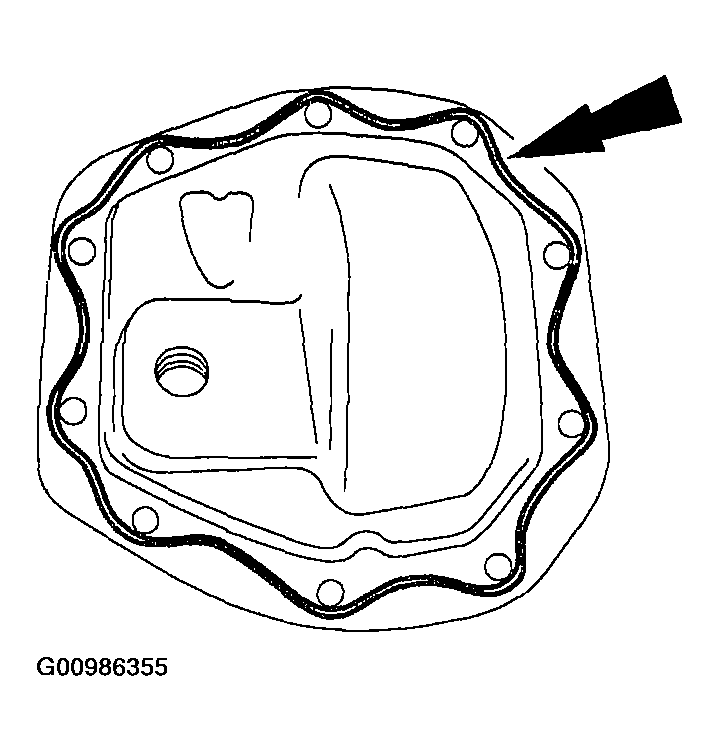

    Fig 2: Applying New Continuous Bead Of Clear Silicone Rubber To The Differential Housing Cover
    G00986355Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has properly cured.
  4. Apply a new continuous bead of clear silicone rubber to the differential housing cover as shown in the illustration.

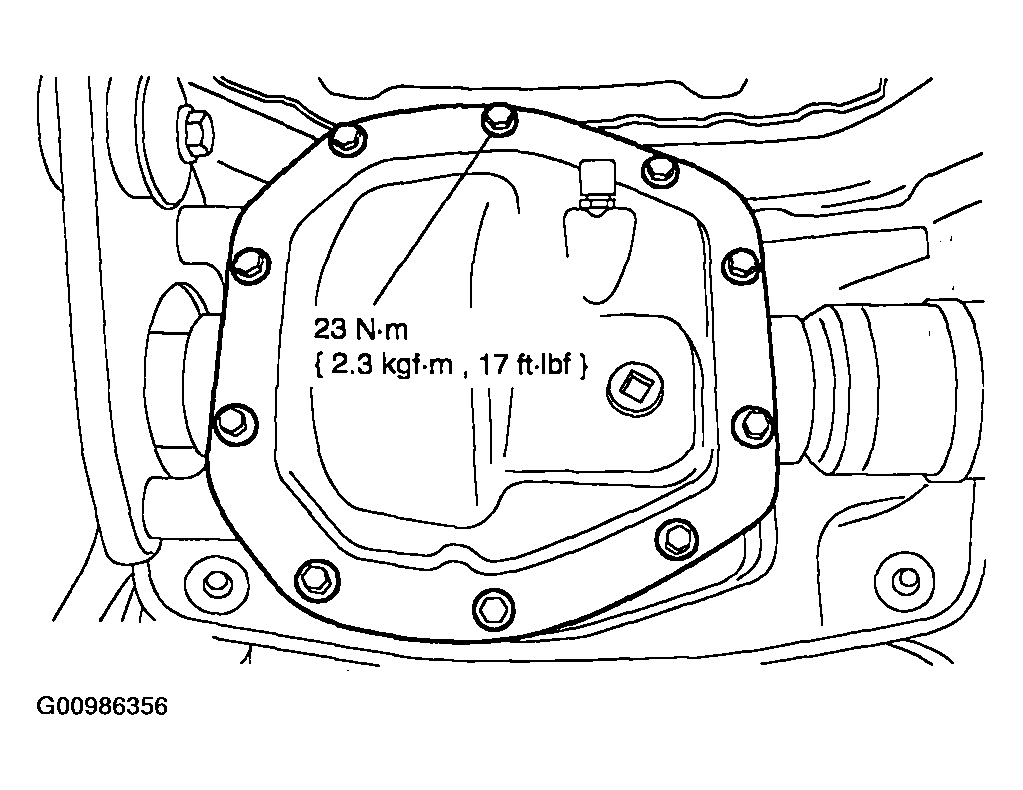

    Fig 3: Installing Differential Housing Cover And Bolts
    G00986356Courtesy of MAZDA MOTORS CORP.
  5. Install the differential housing cover and bolts.

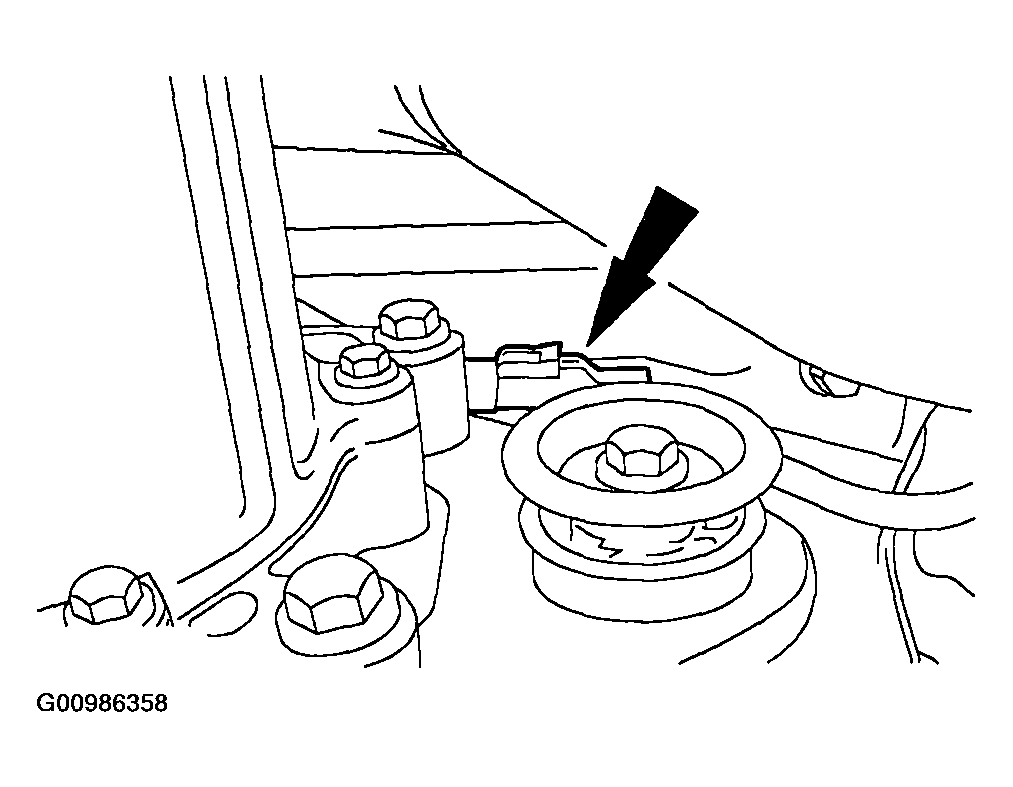

    Fig 4: Locating Electrical Connector
    G00986358Courtesy of MAZDA MOTORS CORP.
  6. Connect the electrical connector.
  7. Install the driveshaft. Refer to DRIVESHAFT .

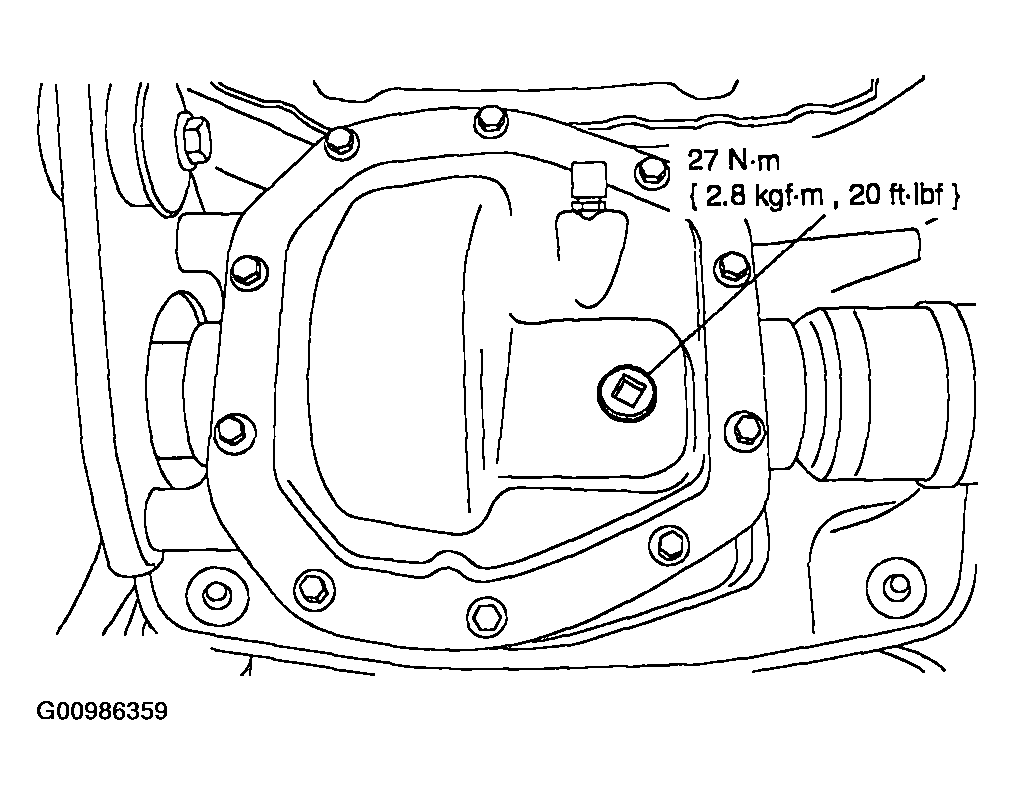

    Fig 5: Locating Filler Plug
    G00986359Courtesy of MAZDA MOTORS CORP.
  8. Fill the rear axle with 1.3 liters (2.75 pints) of rear axle lubricant.
    • Tighten the filler plug.
