Using the symptom troubleshooting

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to take for each trouble symptom.

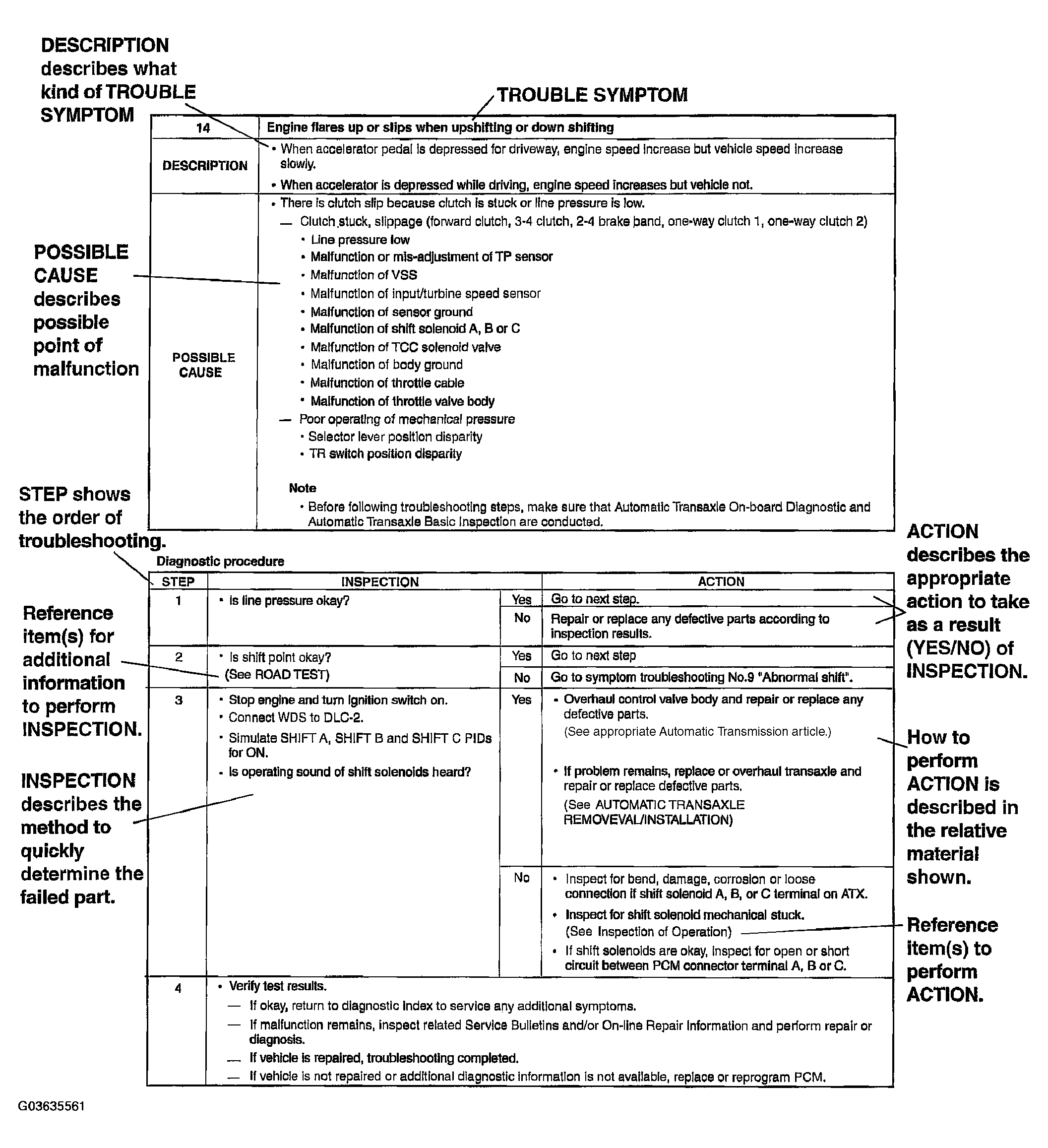

Fig 1: Troubleshooting Symptom Chart
Courtesy of MAZDA MOTORS CORP.
