Rectifier (AJ)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity of the diodes using an analog circuit tester.

If not as specified, replace the rectifier.

CONTINUITY SPECIFICATION CHART

Negative	Positive	Continuity
E	P1, P2, P3, P4, P5, P6	Yes
B	P1, P2, P3, P4, P5, P6	No
P1, P2, P3, P4, P5, P6	E	No
P1, P2, P3, P4, P5, P6	B	Yes

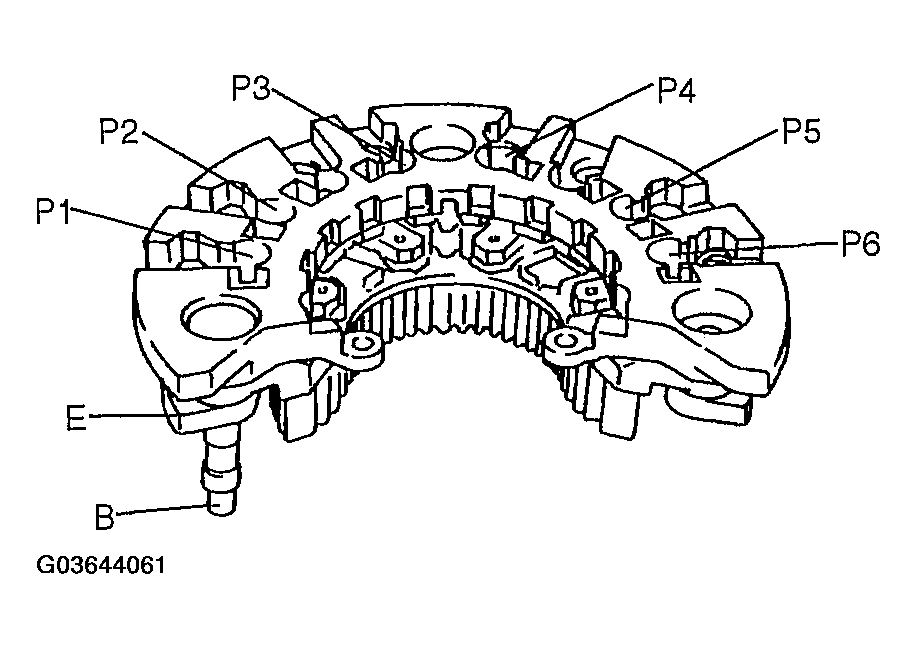

Fig 1: Identifying Terminals On Rectifier (AJ)

Courtesy of MAZDA MOTORS CORP.

Inspect for continuity of the diodes using an digital circuit tester.
- If not as specified, replace the rectifier.
