Front Crossmember Bushing Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

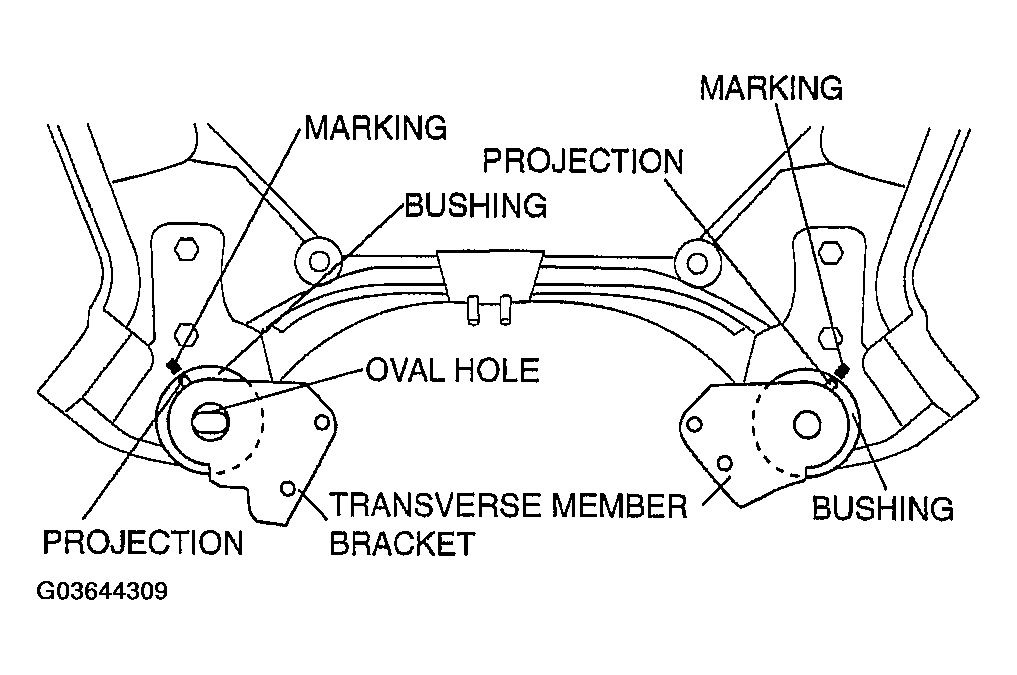

Mark the crossmember as shown in the figure (rear upper side only).

Fig 1: Marking Front Crossmember Bushing
Courtesy of MAZDA MOTORS CORP.
Remove the bushings using flathead screwdriver, being careful not to damage the front crossmember.

Fig 2: Removing Bushings Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
