Dust Cover Installation Note
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

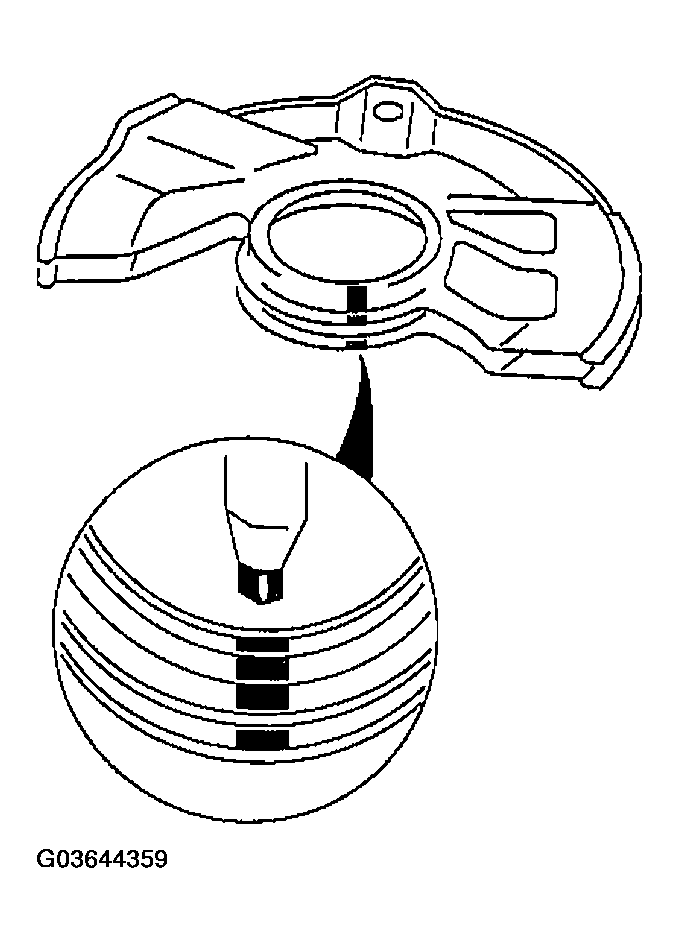

- Mark the new dust cover in the same way as the removed one.
- Align the marks of the new dust cover and the knuckle.
Courtesy of MAZDA MOTORS CORP.
- Install the new dust cover using the SSTs.
Courtesy of MAZDA MOTORS CORP.
