Air Intake Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment.
Remove the duct (1). (See A/C UNIT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

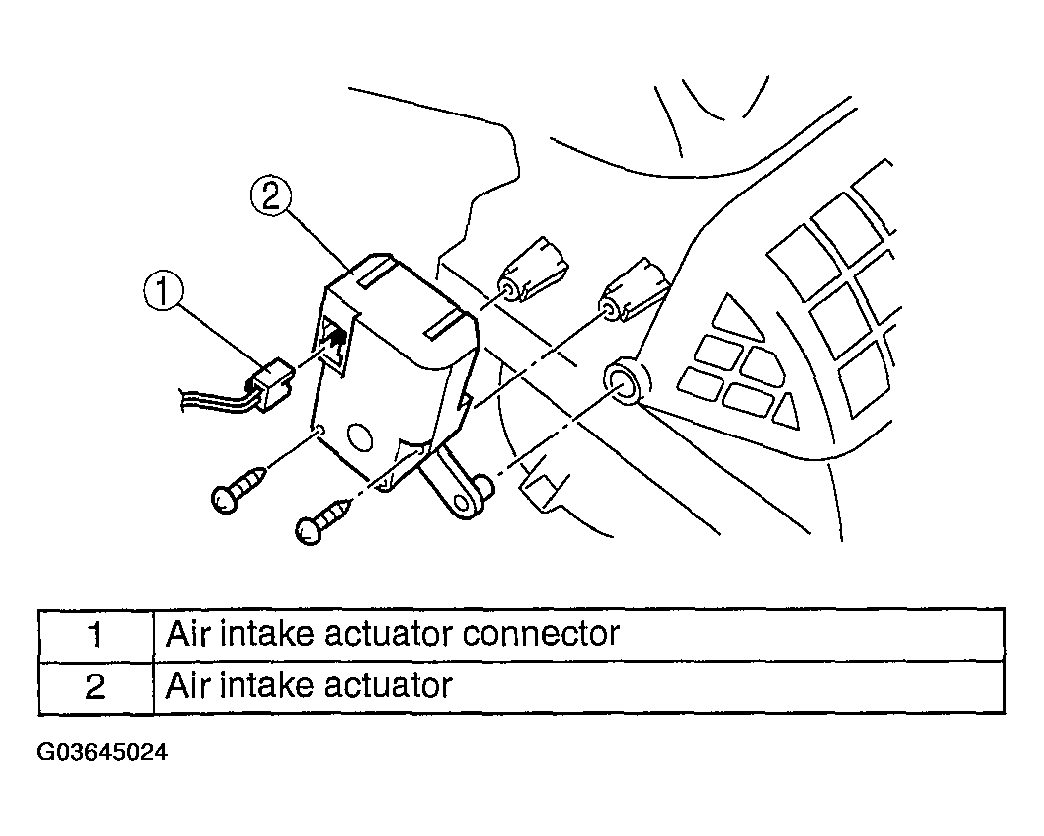

Fig 1: Removing/Installing Of Air Intake Actuator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
