Air Mix Actuator Inspection: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the resistance between the terminals of the air mix actuator is as shown in the table.
- If not as specified, replace the air mix actuator.

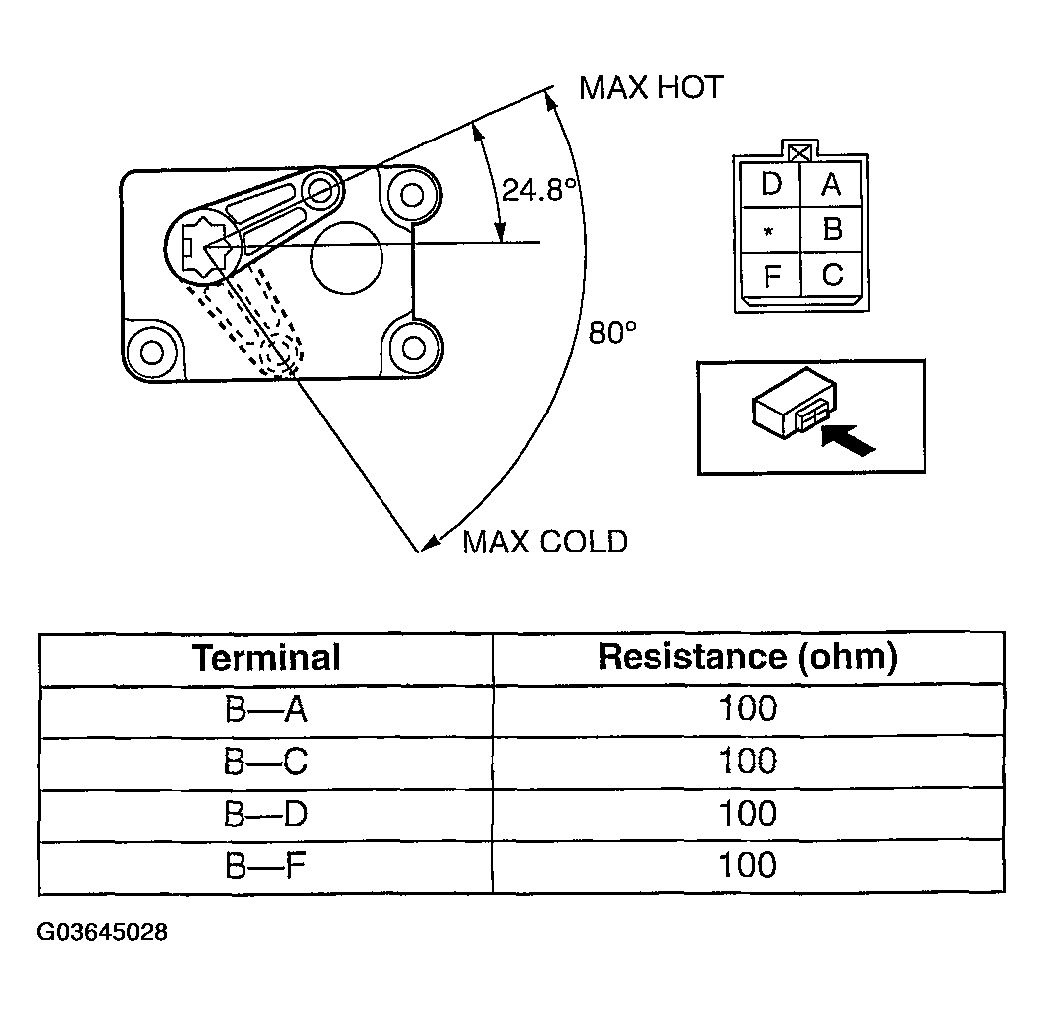

  Fig 1: Checking Air Mix Actuator
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Circuit Diagram Of Air Mix Actuator
  Courtesy of MAZDA MOTORS CORP.
