Multiplex Communication System: Flowchart

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

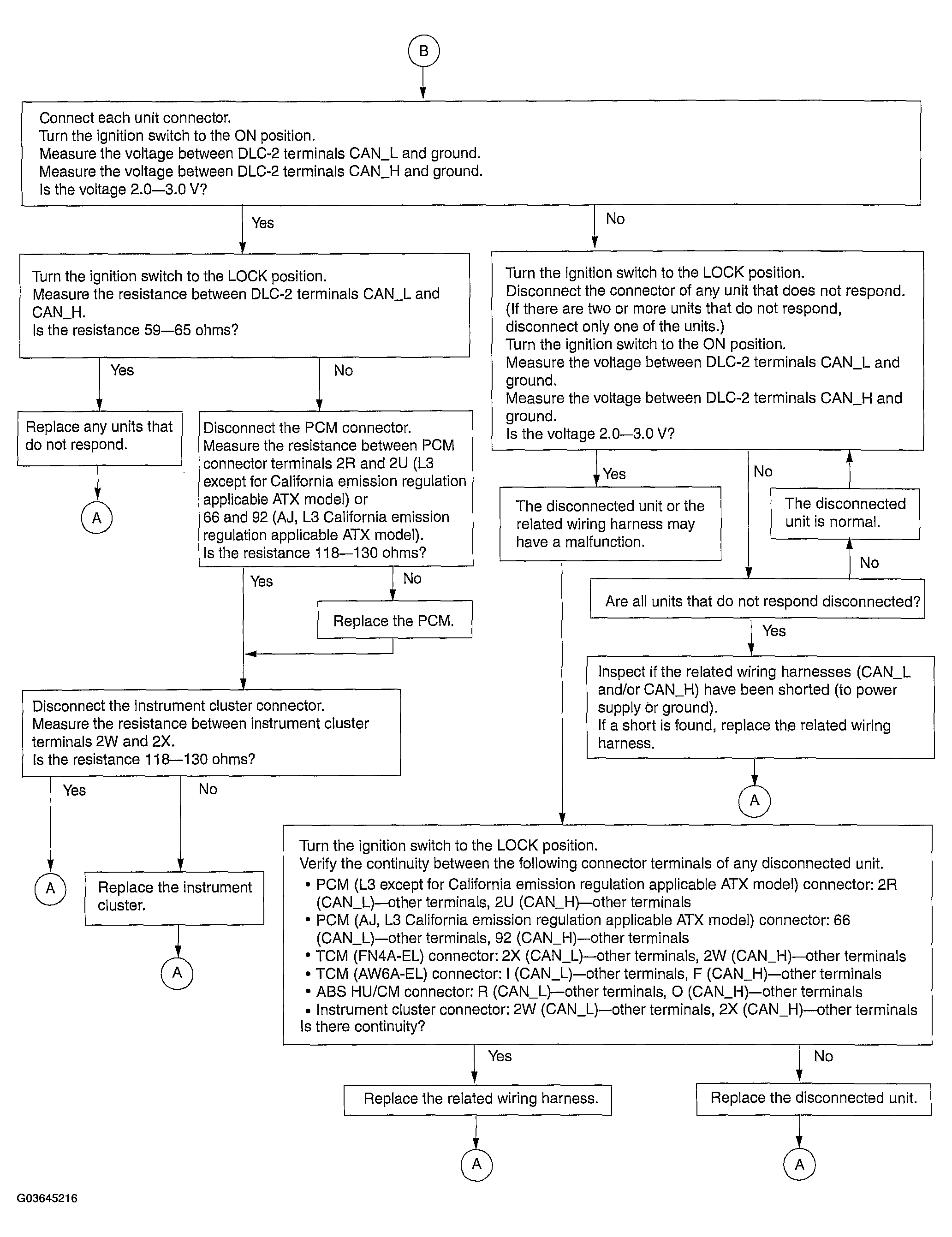

Fig 2: Multiplex Communication Systems Diagnostic Flowchart (2 Of 2)
G03645216Courtesy of MAZDA MOTORS CORP.
