Center Box Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the center panel module.

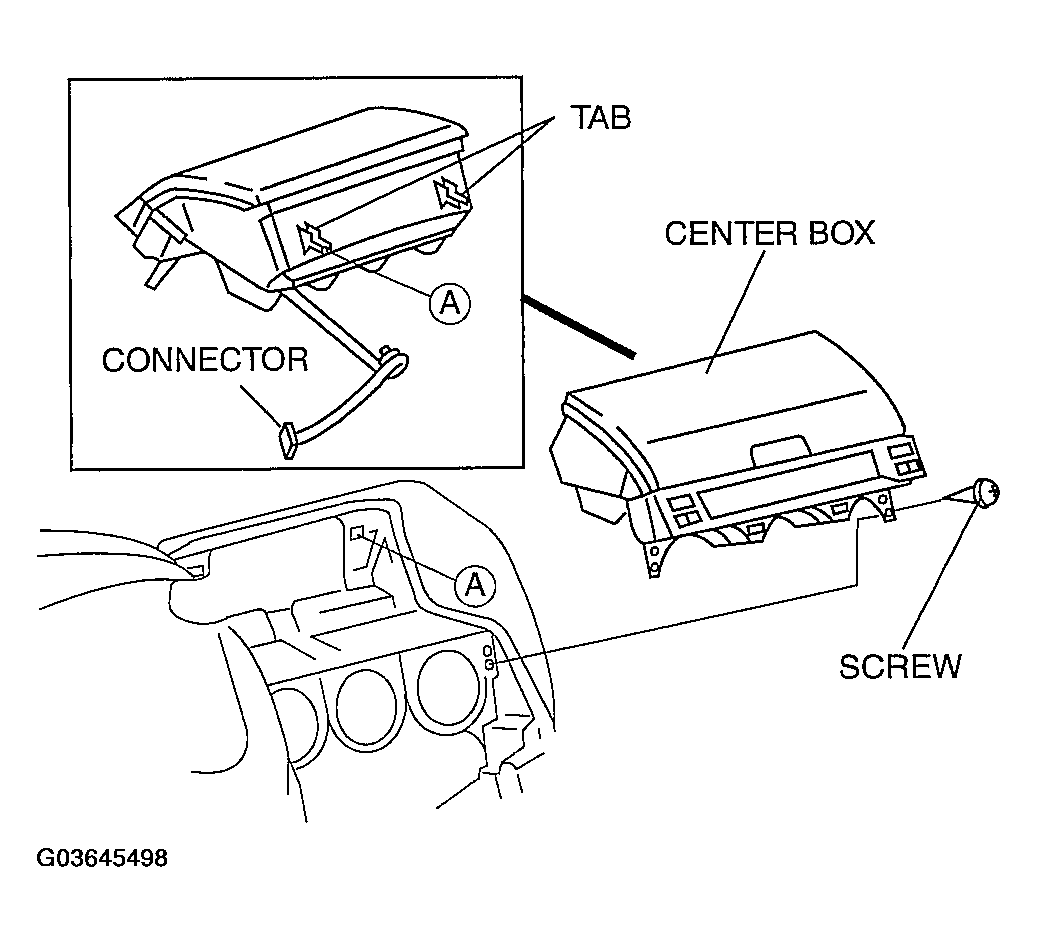

- Remove the screws.
- Pull the center box outward, then disengage the tabs.
- Disconnect the information display connector.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
