Column Cover Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

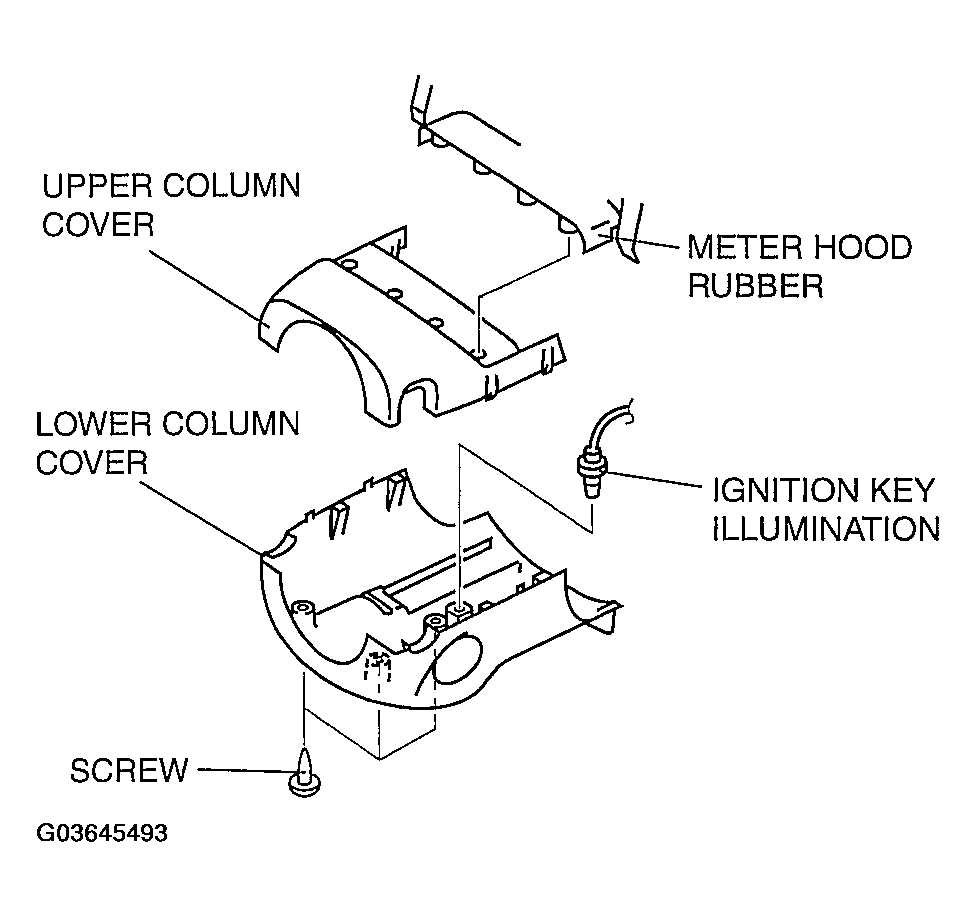

- Detach the fitting parts of the upper column cover from the meter hood rubber.
- Remove the upper column cover.
- Remove the ignition key illumination.
- Remove the screws.
- Remove the lower column cover.
- Install in the reverse order of removal.
