Side Panel Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

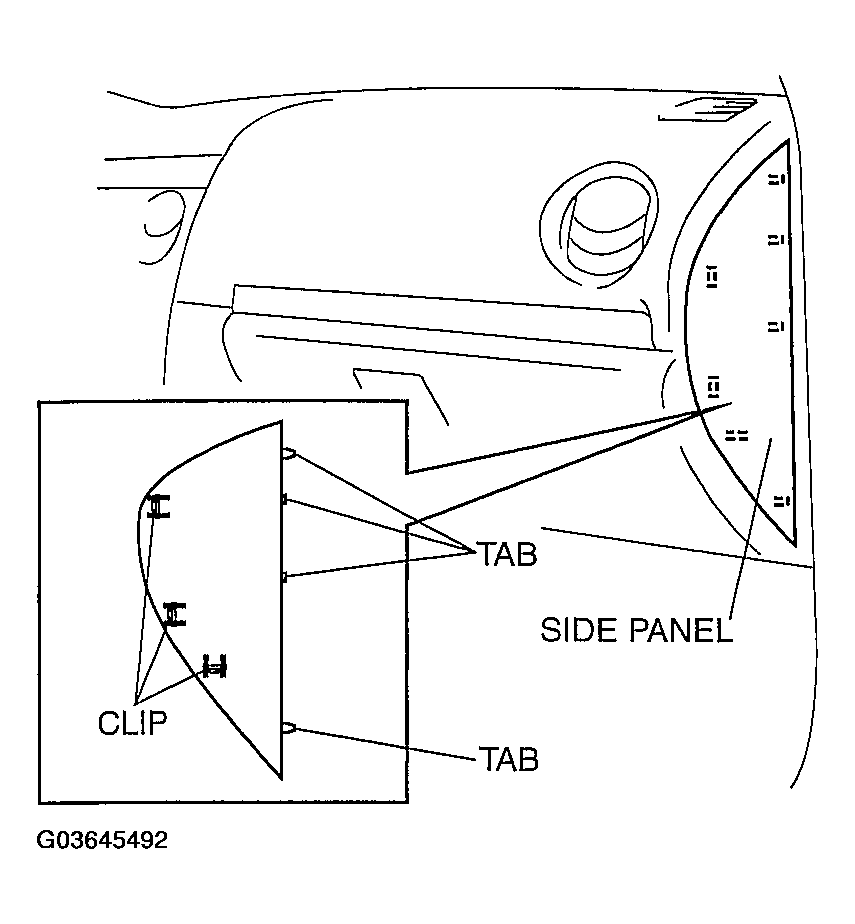

- Disengage clips using a tape-wrapped flathead screwdriver.
- Pull the side panel outward, then disengage tabs from dashboard, and remove the side panel.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
