Front Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front door trim.
  3. Remove in the order indicated in the table.

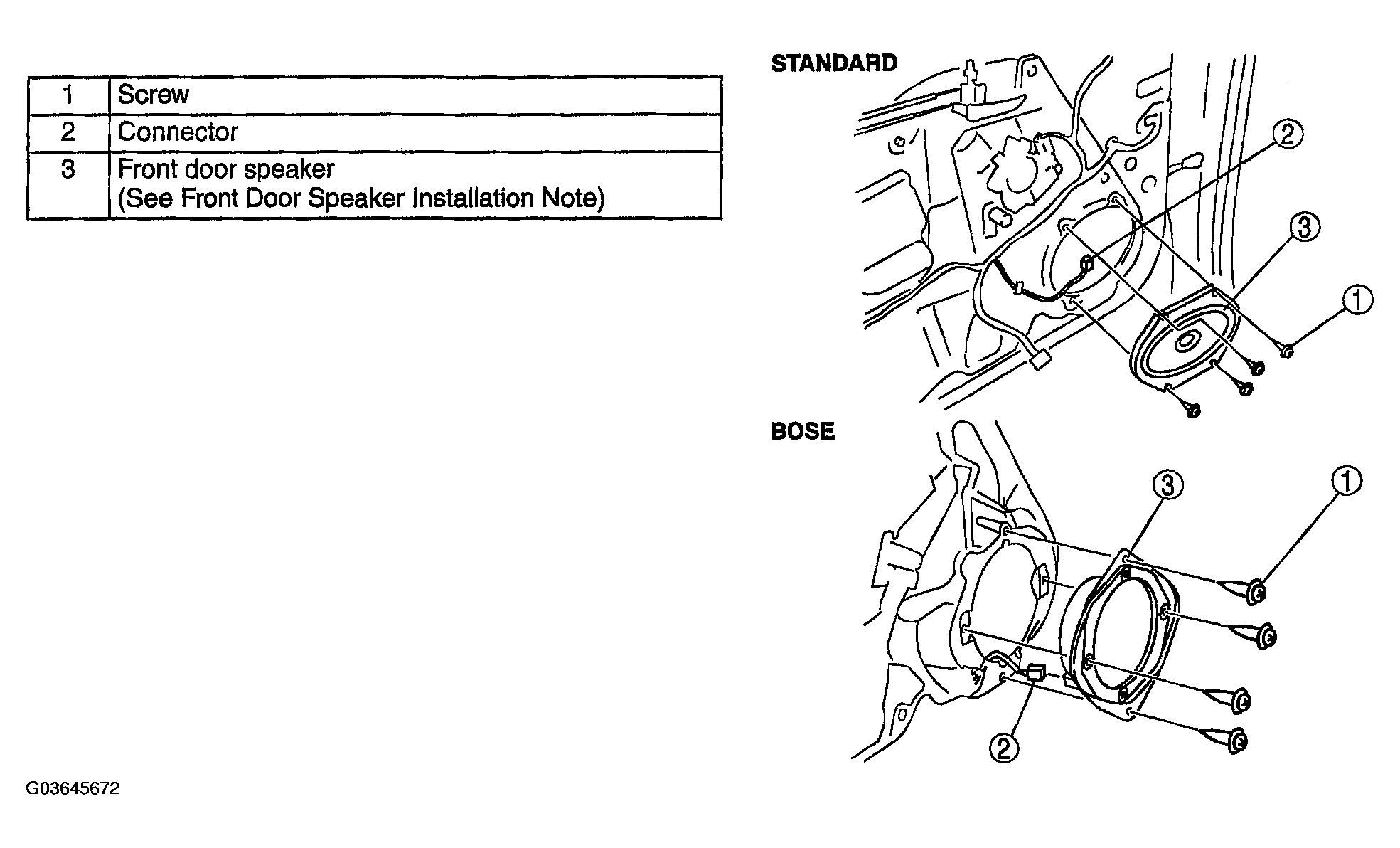

    Fig 1: Front Door Speakers Removal Sequence
    G03645672Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal
