Woofer Removal/Installation [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear package trim.
  3. Remove in the order indicated in the table.

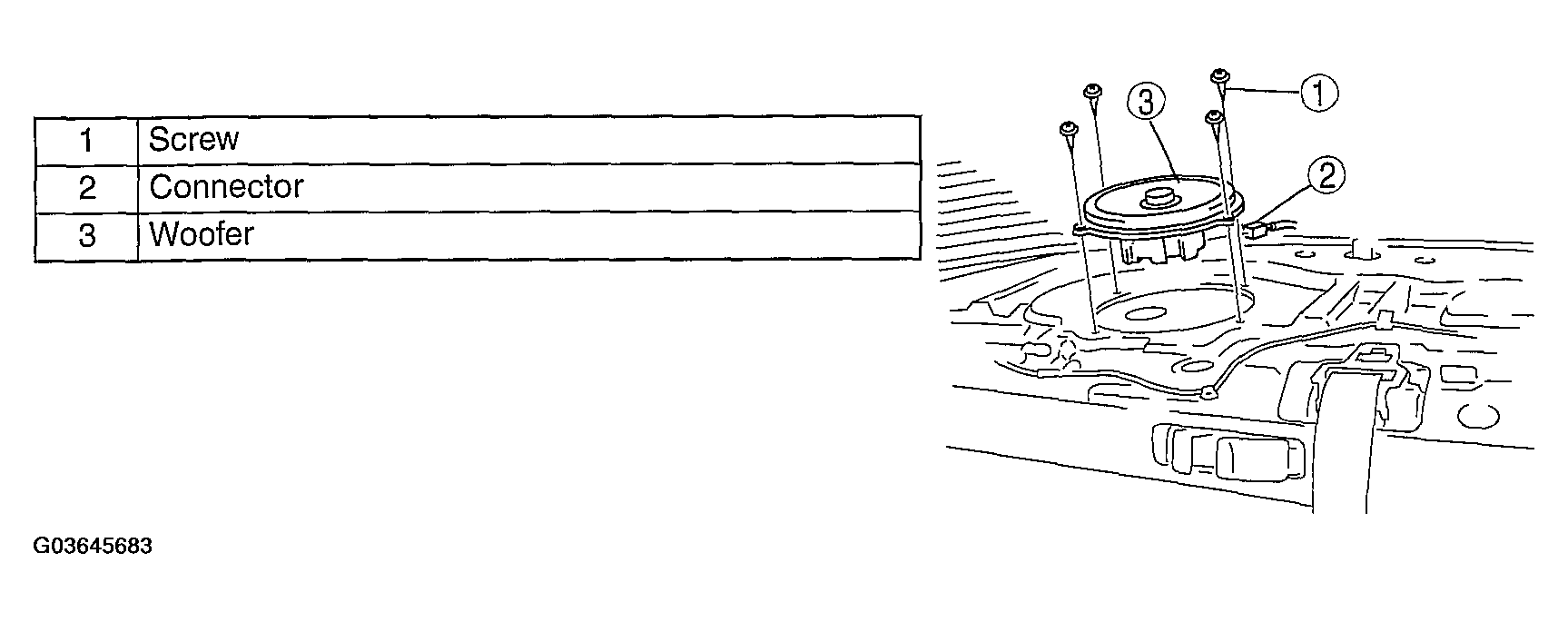

    Fig 1: Woofer Removal Sequence (Sedan)
    G03645683Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
