Magnetic Clutch Disassembly/Assembly
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)

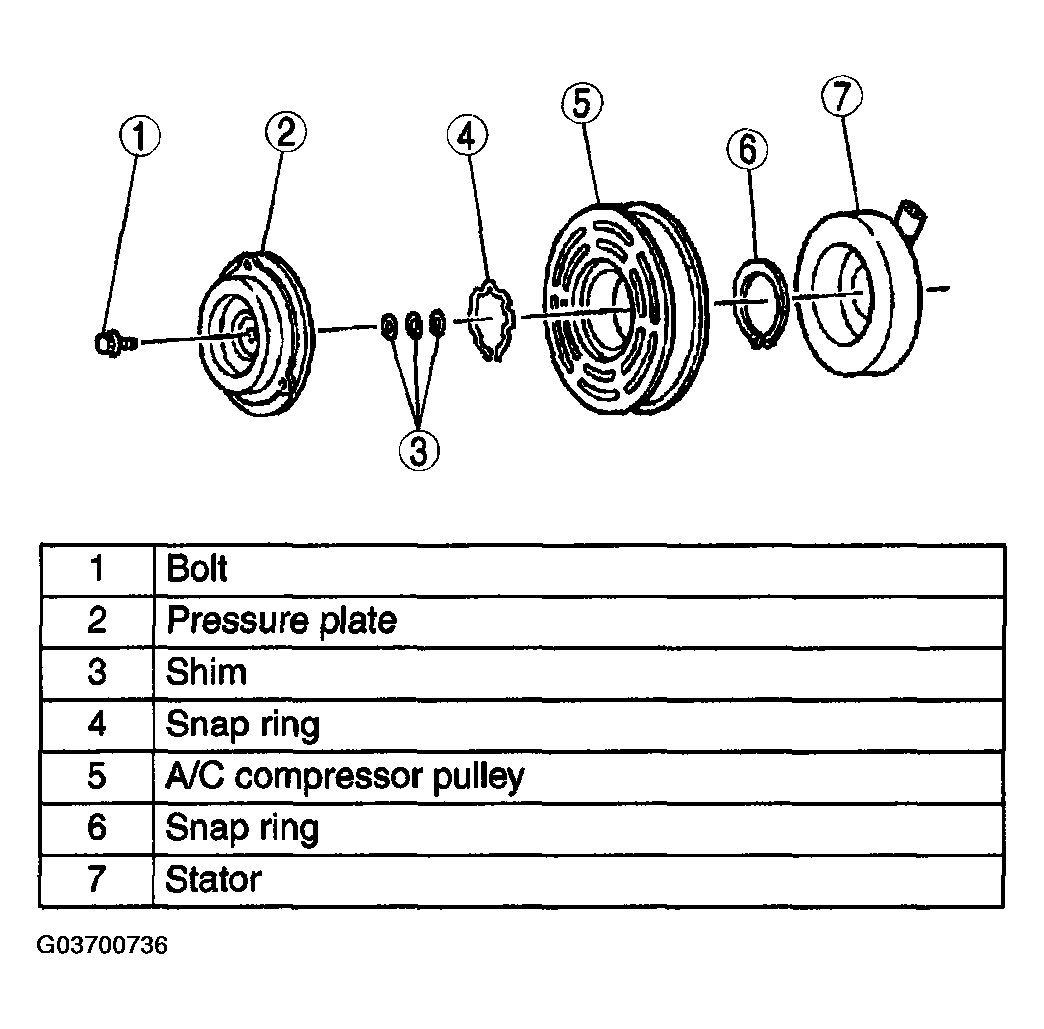

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
- Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
