Magnetic Clutch Inspection: Operation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the magnetic clutch connector.
Connect battery positive voltage to terminal A and ground to terminal B of the magnetic clutch.

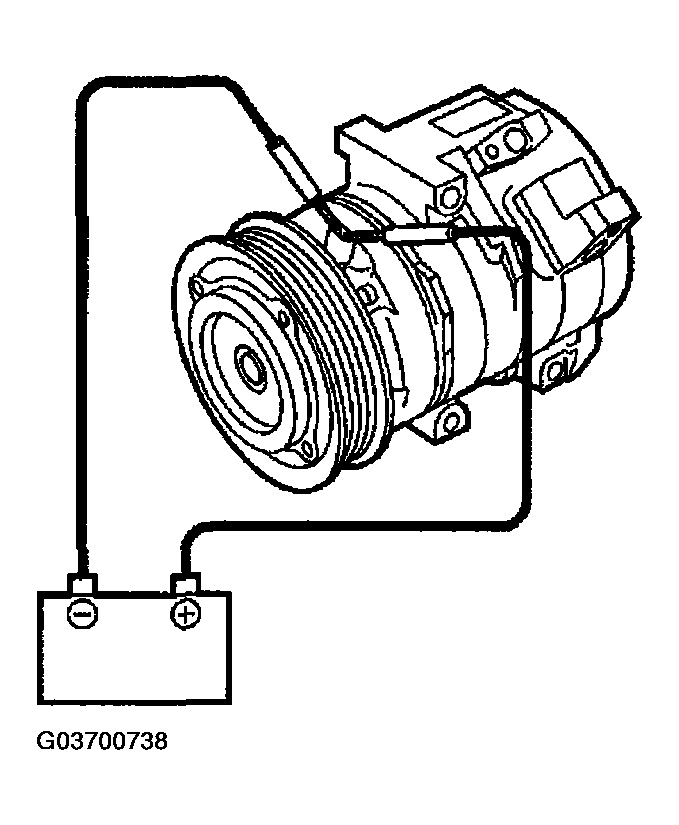

Fig 1: Connecting Battery Positive Voltage To Terminal A And Ground To Terminal B Of Magnetic Clutch
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If there is any malfunction, replace the stator.
Fig 2: Inspecting Magnetic Clutch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
