Crash Zone Sensor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the crash zone sensor improperly can accidentally deploy the air bags and pre-tensioner seat belts, which may seriously injure you. Read the service warnings and cautions before handling the crash zone sensor. (See SERVICE WARNINGS .) (See SERVICE CAUTIONS .)
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the air cleaner box tray. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

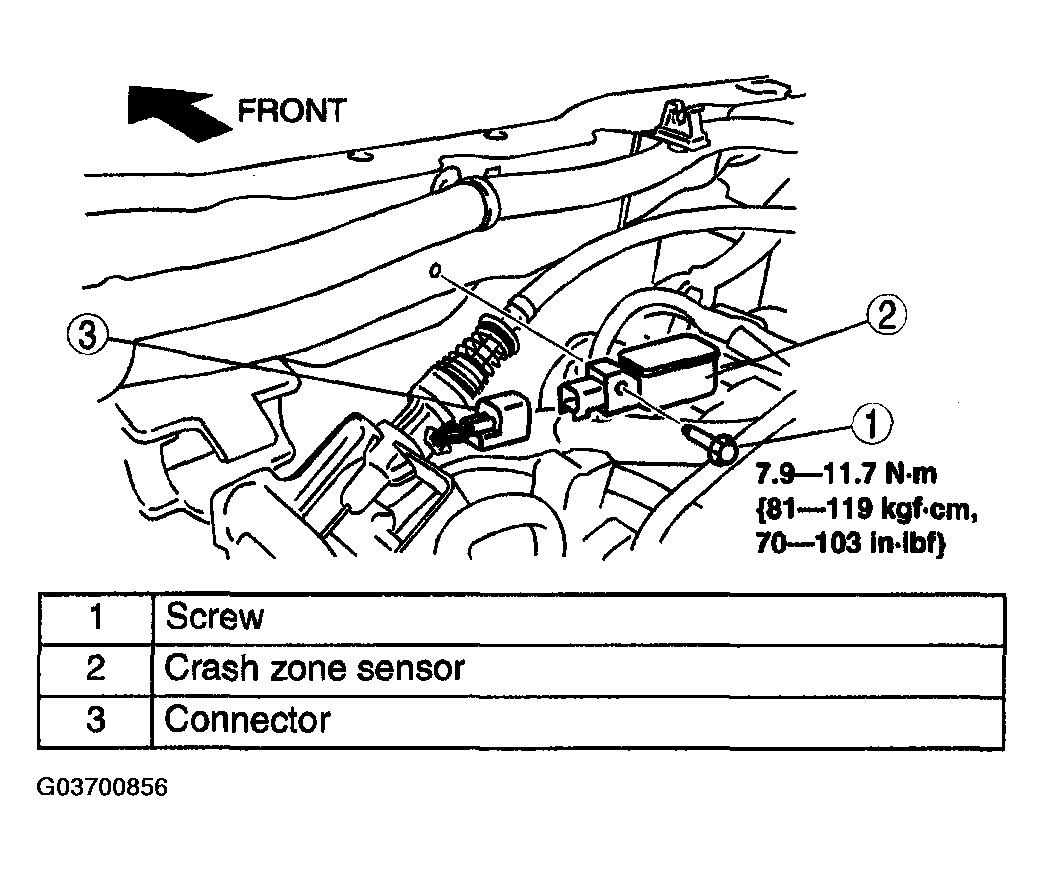

    Fig 1: Removing Crash Zone Sensor - With Torque Specifications
    G03700856Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Turn the ignition switch to the ON position.
  7. Verify that the air bag system warning light illuminates for approx. 6 s  and goes out.
    • If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system.
